Product Details:
|
| Model Number: | 10GS-D500T-C | Type: | Ni-Cd |
|---|---|---|---|
| Nominal Voltage: | 12.0V | Nominal Capacity: | 5000mAh |
| Configuration: | Dual Stick | Size: | D |
| High Light: | D5000mAh Emergency Light Ni Cd Battery,12V Emergency Light Ni Cd Battery,D5000mAh Rechargeable Ni Cd Battery |
||

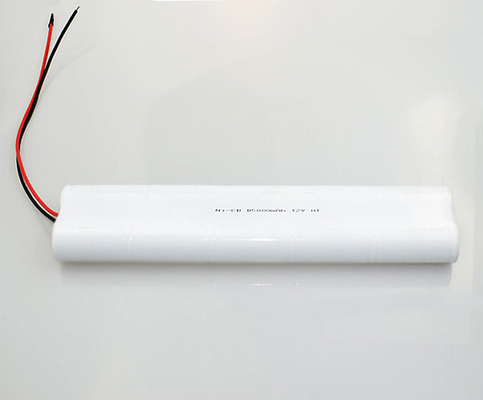

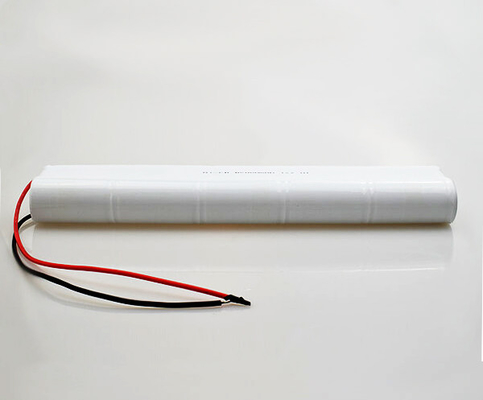

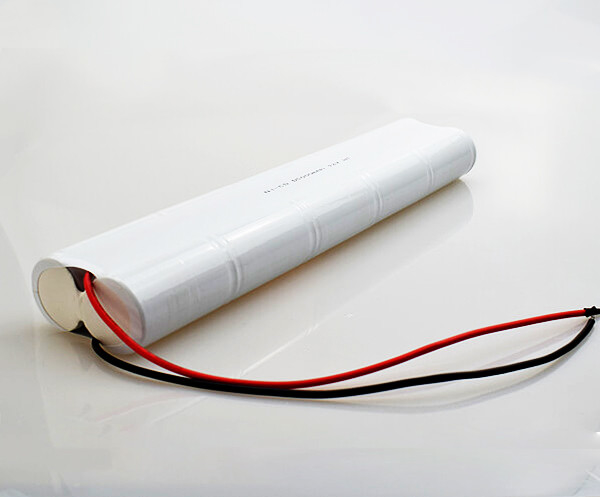

High Cost-Effective Ni-Cd Rechargeable Battery Pack D500mAh 12V
Composition/Information On Ingredients:
Nickel,Cadmium,Iron,Sodium,Lithium,Water,Cobait
Product parameters:
| Pos. | Product Paramaters | Data |
| 1 | Standard Charge Mode | 0.1C for 16 hours |
| 2 | Cycle Life | ≥500 times |
| 3 |
Cell Weight |
≈36g |
| 4 | Storage Temperature | (-30℃) - (+60℃) |
| 5 | Cell Dimension | 23 +0 -1.0(D), 33.5±0.5(H) |
| 6 |
Packaging |
Standard export package or customized package |
Application:
| Pos. | Application fields | Application of the product |
| 1 | Lighting | emergency lighting, emergency power supply, solar lights |
| 2 | Power tools | electric drills, planers, saws, power granted |
| 3 | Electronic toys | remote control car, remote control boats, aircraft, model aircraft |
| 4 | Communication equipment | cordless phones, walkie-talkie |
Something to know about Ni-Cd battery
1.What is a Ni-Cd battery?
A nickel-cadmium battery (Ni-Cd or Ni-Cad) is a rechargeable battery used in portable computers, rigs, video cameras, and other small battery-powered devices that require uniform discharge. Ni-Cds use electrodes made from nickel oxide hydroxide, cadmium metal, and potassium hydroxide alkaline electrolyte.
Ni-Cd Battery Pack
Two or more Ni-Cd battery cells combined to form a battery pack. Because they are typically similar in size to primary cells (non-rechargeable batteries), Ni-Cds may have lower terminal voltages and smaller ampere-hour capacities. However, unlike primary cells, Ni-Cds provide a nearly constant terminal voltage during discharge, which can result in an almost undetectably low charge. During discharge, Ni-Cds convert chemical energy into electrical energy. During charging, Ni-Cds convert electrical energy back into chemical energy.
2.Advantages of Ni-Cd battery:
1.Withstand long periods of deep discharge.
2.More charge/discharge cycles than other rechargeable batteries to extend battery life.
3.Higher energy density, lighter and more compact than lead-acid batteries Ni-Cd is preferred when size and weight are critical factors, such as in aircraft.
4.Working temperature for Ni-Cd battery could be up to 55 degree, and even up to 70 degree, and expected service life could be up to 4 to 5 years.
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
