Product Details:
|
| Model Number: | 4GS-AA130 | Type: | NiMH |
|---|---|---|---|
| Capacity: | 1300mAh | Voltage: | 4.8V |
| Size: | AA | Circle Life: | ≥500 Times |
| High Light: | 4.8V NiMh AA Battery,1300mAh NiMh AA Battery,NiMh 1300mAh Battery |
||

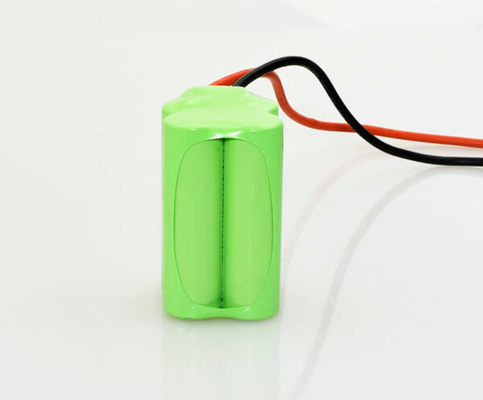

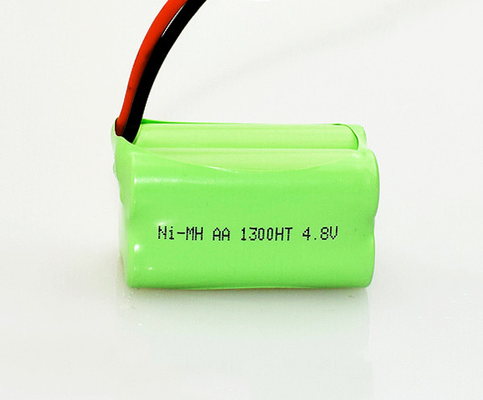

High cost-effective For Emergency Light Ni-MH Battery AA 1300mAh 4.8V
Cell Product parameters:
| Description | Specification | Conditions |
| Nominal Voltage | 1.2 V | |
| Nominal Capacity | 2200mAh |
Standard Charge/Discharge,up to 3 cycles are allowed. |
| Minimum Capacity | 2200mAh | |
| Standard Charge | 220mA(0.1C) × 16 hrs | Ta=0～70℃ (see Note 1) |
|
Rapid Charge |
1100mA(0.5C) ×144 mins approx. |
(With -△V or dT/dt or TCO control) Timer CutOff =120% input capacity ( for ref. only) -△V= 5-10mV/cell dT/dt = 1～2℃/3min Ta=10～55℃ |
| Trickle Charge | 110-220mA(0.05C-0.1C) | Ta=0～70℃ |
| Discharge Cut-off Voltage | 1.0V | |
| Maximum Discharging Current | 2200mA(1C) | |
| Discharge Temperature | -20℃～70℃ | |
| Storage Temperature | -20℃～35℃ | |
| Typical Weight(approximate) | 50g |
Test methods and performance:
|
Test |
Specification |
Conditions |
Remarks |
| Open Circuit Voltage(OCV) | ≥1.25V | After 24 hours standard charge | |
|
Capacity |
≥2200mAh |
Standard Charge/Discharge |
Up to 3 cycles are allowed |
|
0.5C Discharge |
≥110min |
Standard Charge, 1hr rest before discharge |
End voltage 1.0V |
| Permanent Charge Endurance Test | T1≥195min T2≥170min |
|
|
|
Internal Impedance (Ri) |
≤12mΩ |
Following a standard charge period, Checked at 1000Hz with 1~4 hour |
|
|
Overcharge |
No leakage nor deformation |
Standard discharge 220mA(0.1C) charge 48 hours |
|
|
Charge Retention |
≥1320mAh |
Standard Charge, Storage:28 days, Standard Discharge | |
|
Charge Efficiency |
≥270min |
Standard discharge Recharge at 0.1C for 10 hours,then Discharge at 0.2C to 1.0/cell. |
|
|
Leakage |
No leakage nor deformation |
Fully charged at1100mA(0.5C), Storage for 14 days |
|
|
IEC Cycle Test |
≥500 Cycle |
IEC 61951-1:2003 |
|
Performance Curves for Ni-MH Cell:
1. Ni-MH Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-MH Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-MH Cell Charge Efficiency At Different Temperature
4. Ni-MH Cell Cycle Life Curve
