Product Details:
|
| Model Number: | 3GS-C300T-A | Type: | Ni-Cd |
|---|---|---|---|
| Size: | C | Nominal Voltage: | 3.6V |
| Nominal Capacity: | 3000mAh | Configuration: | Side By Side |
| High Light: | C3000mAh 3.6 NiCd Batteries,c3000mah 3.6 nicd battery Godson,Godson c3000mah 3.6 nicd battery |
||

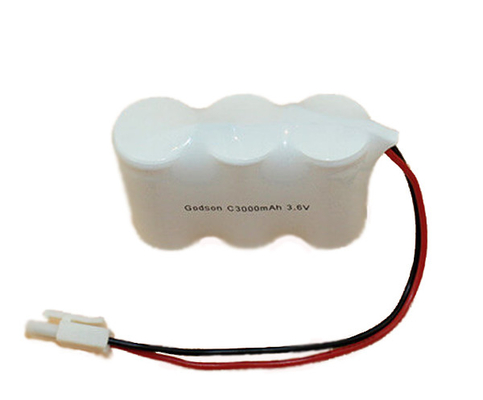

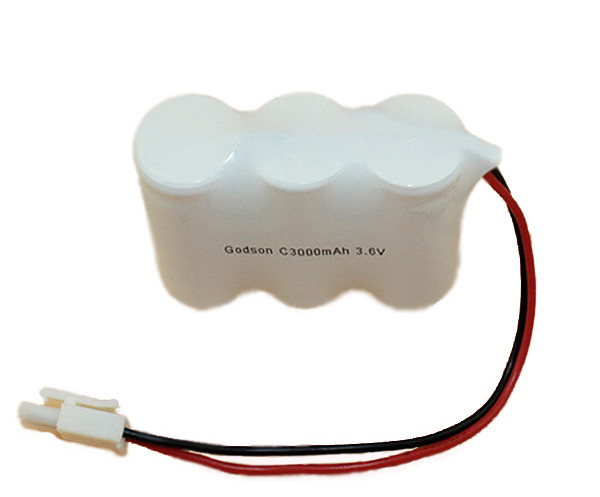

Rechargeable 3.6v Battery - Nickel Cadmium Battery Pack C3000mAh
Product parameters:
| Pos. | Product Paramaters | Data |
| 1 | Standard Charge Mode | 0.1C for 16 hours |
| 2 | Cycle Life | ≥500 times |
| 3 | Operating Temperature | (-20℃) - (+70℃) |
| 4 | Storage Temperature | (-30℃) - (+60℃) |
| 5 | Cell Dimension | 25.8 +0 -1.0(D), 49.5±0.5(H) |
| 6 | Cell Weight | ≈75g |
| 7 | Expected Life | 5 years |
| 8 | Packaging | Standard export package or customized package |
Application:
| Pos. | Application fields | Application of the product |
| 1 | Lighting | emergency lighting, emergency power supply, solar lights, searchlingts, flashlights |
| 2 | Power tools | electric drills, planers, saws, power granted |
| 3 | Electronic toys | remote control car, remote control boats, aircraft, model aircraft |
| 4 | Communication equipment | cordless phones, walkie-talkie |
| 5 | Other uses | electric shavers, massagers, electric tooth brush |
List Of Ni-CD High Temperature Cells:
| Type | Model | Diemeter (mm) |
Height (mm) |
Capacity (mAh) |
Voltage (V) |
Operating Temperature (°C) |
| C | GS-C220T | 25.8 +0 -1.0 | 49.5±0.5 | 2200 | 1.2 | -20 to 70 |
| GS-C220 | 25.8 +0 -1.0 | 49.5±0.5 | 2200 | 1.2 | -20 to 55 | |
| GS-C250T | 25.8 +0 -1.0 | 49.5±0.5 | 2500 | 1.2 | -20 to 70 | |
| GS-C250 | 25.8 +0 -1.0 | 49.5±0.5 | 2500 | 1.2 | -20 to 55 | |
| GS-C280T | 25.8 +0 -1.0 | 49.5±0.5 | 2800 | 1.2 | -20 to 70 | |
| GS-C280 | 25.8 +0 -1.0 | 49.5±0.5 | 2800 | 1.2 | -20 to 55 | |
| GS-C300T | 25.8 +0 -1.0 | 49.5±0.5 | 3000 | 1.2 | -20 to 70 | |
| GS-C300 | 25.8 +0 -1.0 | 49.5±0.5 | 3000 | 1.2 | -20 to 55 |
Advantages of Ni-Cd battery:
1.Ni-Cd battery has high charge and discharge efficiency and good safety performance at high temperature and has long service life under condition of long term floating charge, which makes it very suitable for emergency lighting application.
2.Working temperature for Ni-Cd battery could be up to 55 degree, and even up to 70 degree, and expected service life could be up to 4 to 5 years.
3.Withstand long periods of deep discharge
4.More charge/discharge cycles than other rechargeable batteries to extend battery life
5.Higher energy density, lighter and more compact than lead-acid batteries Ni-Cd is preferred when size and weight are critical factors, such as in aircraft
6.Lower self-discharge rate than nickel-metal hydride(20% per month vs. 30% per month)
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
Why Godson?
-- Professional And Stay Focused
More than twenty years’ experience in battery industry; Keep focusing on emergency lighting battery, e-bike battery and power tool battery.
-- Great Reliability
Expected life of our Ni-Cd battery pack is more than 5 years; Expected life of our LiFePO4 battery pack is more than 10 years; Our batteries comply with standards of ICEL 1010, IEC 60598, IEC 61951, IEC 61960, IEC 62133 and UN38.3.
-- Super High Cost-Effective
Price of our products is much more competitive comparing with our competitors, but with the same or even better performance.
-- Strict Control In Production Process
ISO9001/2008 standards are strictly implemented in every process of our production.
-- Quick Response and Fast Delivery
Every inquiry would be replied within 24 hours, each order would be delivered within 30 days.
-- Flexibility in orders
Small orders acceptable as well.
