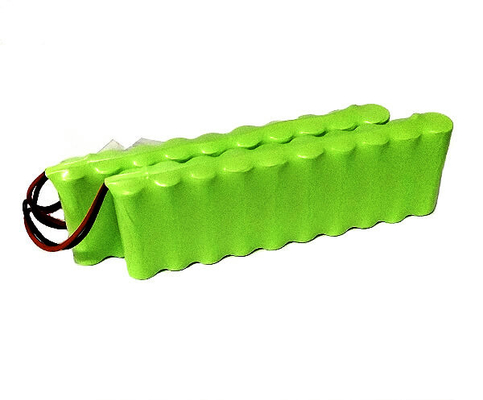

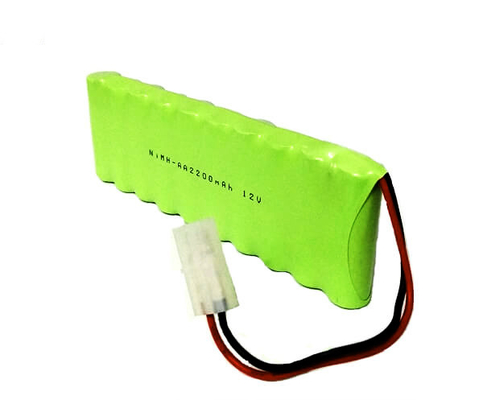

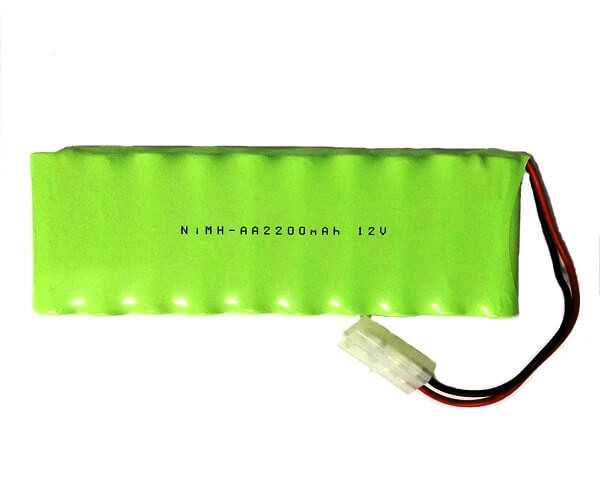

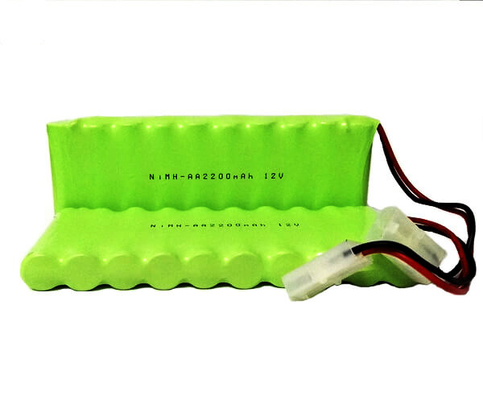

Portable 12v NiMh Battery Pack For Emergency Lighting SC2200mAh

Large Image : Portable 12v NiMh Battery Pack For Emergency Lighting SC2200mAh

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Godson or OEM
Model Number:	Ni-MH Battery SC2200mAh 12V

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable
Payment Terms:	T/T

Contact Now

Portable 12v NiMh Battery Pack For Emergency Lighting SC2200mAh

Description

Type:	NiMH	Capacity:	2200mAh
Voltage:	12V	Size:	SC
Configuration:	Side By Side	Model Number:	10GS-SC220HT-A
Highlight:	Godson sc2200mah 12v nimh battery , SC2200mAh 12v niMh Battery Godson , sc2200mah 12v nimh batteries

High cost-effective For Emergency Light Ni-MH Battery SC2200mAh 12V

Cell Product parameters:

Description	Specification	Conditions
Nominal Voltage	1.2 V
Nominal Capacity	2200mAh	Standard Charge/Discharge,up to 3 cycles are allowed.
Minimum Capacity	2200mAh	Standard Charge/Discharge,up to 3 cycles are allowed.
Standard Charge	220mA(0.1C) × 16 hrs	Ta=0～70℃ (see Note 1)
Rapid Charge	1100mA(0.5C) ×144 mins approx.	(With -△V or dT/dt or TCO control) Timer CutOff =120% input capacity ( for ref. only) -△V= 5-10mV/cell dT/dt = 1～2℃/3min Ta=10～55℃
Trickle Charge	110-220mA(0.05C-0.1C)	Ta=0～70℃
Discharge Cut-off Voltage	1.0V
Maximum Discharging Current	2200mA(1C)
Discharge Temperature	-20℃～70℃
Storage Temperature	-20℃～35℃
Typical Weight(approximate)	50g

Test methods and performance:

Test

Specification

Conditions

Remarks

Open Circuit Voltage(OCV)

≥1.25V

After 24 hours standard charge

Capacity

≥2200mAh

Standard Charge/Discharge

Up to 3 cycles are allowed

0.5C Discharge

≥110min

Standard Charge,

1hr rest before discharge

End voltage 1.0V

Permanent Charge Endurance Test

T1≥195min T2≥170min

Internal Impedance (Ri)

≤12mΩ

Following a standard charge period, Checked at 1000Hz with 1~4 hour

Overcharge

No leakage

nor deformation

Standard discharge 220mA(0.1C) charge 48 hours

Charge Retention

≥1320mAh

Standard Charge, Storage:28 days, Standard Discharge

Charge Efficiency

≥270min

Standard discharge

Recharge at 0.1C for 10 hours,then Discharge at 0.2C to 1.0/cell.

Leakage

No leakage

nor deformation

Fully charged at1100mA(0.5C), Storage for 14 days

IEC Cycle Test

≥500 Cycle

IEC 61951-1:2003

Application:

Pos.	Application fields	Application of the product
1	Lighting	emergency lighting, emergency power supply, solar lights, searchlingts, flashlights
2	Power tools	electric drills, planers, saws, power granted
3	Electronic toys	remote control car, remote control boats, aircraft, model aircraft
4	Communication equipment	cordless phones, walkie-talkie
5	Other uses	electric shavers, massagers, electric tooth brush

Performance Curves for Ni-MH Cell:

1. Ni-MH Cell Charge Curve At 0.1C For 16h At 55 Degree

Portable 12v NiMh Battery Pack For Emergency Lighting SC2200mAh 0

2. Ni-MH Cell Discharge Curve At 0.25C At 55 Degree

Portable 12v NiMh Battery Pack For Emergency Lighting SC2200mAh 1

3. Ni-MH Cell Charge Efficiency At Different Temperature

Portable 12v NiMh Battery Pack For Emergency Lighting SC2200mAh 2

4. Ni-MH Cell Cycle Life Curve

Portable 12v NiMh Battery Pack For Emergency Lighting SC2200mAh 3

Our Products are Being Shipped.

Godson Technology Co., Ltd. is a globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, E-bike battery and power tool battery, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4, Lead Acid, Lion-polymer and other relevant lithium batteries.

Dating back to the year of 1993, we have already had 20 years' experience in battery industry. We have started to focus on emergency lighting battery and emergency lighting products since 2010, and concentrate on E-bike battery and power tool battery since 2013.

Relying on the great reliability and the feature of super high cost-effective, our products have been exported to many countries, such as USA, UK, Turkey, Germany, Ireland, Italy, Spain, Poland and Singapore.

Portable 12v NiMh Battery Pack For Emergency Lighting SC2200mAh 4
