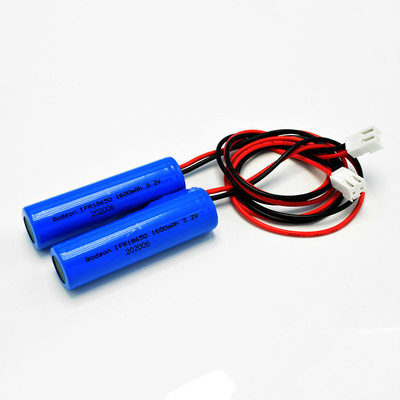

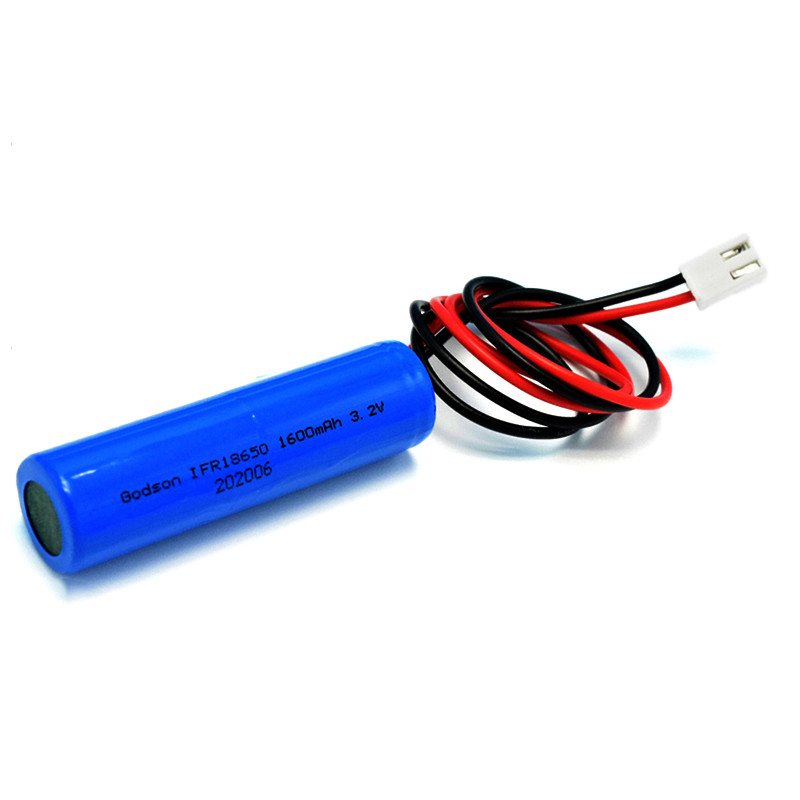

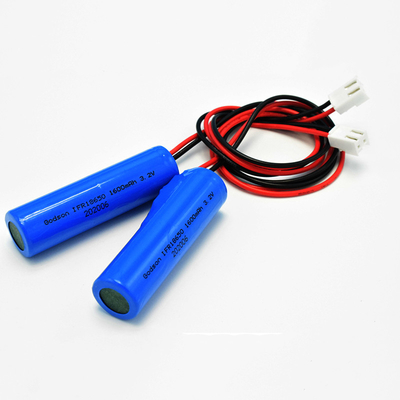

Lifepo4 Lithium Battery 18650 3.2V 1600mAh For Emergency Exit Light
LiFePO4 Rechargeable Battery 3.2V 1600mAh
| Pos. |
Product Parameters |
Data |
| 1 |
Standard Charge Mode |
CC/CV |
| 2 |
Cycle Life |
≥2000 times |
| 3 |
Operating Temperature |
Charge:(0℃)-(45℃)
Discharge(-20℃) - (+60℃)
Storage Temperature: (-20℃) - (+50℃)
|
| 4 |
Cell Dimension |
18.5(W), 65.5(H)mm |
| 5 |
Expected Life |
10 years |
| 6 |
Packaging |
Standard export package or customized package |
List Of LiFeO4 High Temperature Cells
| Type |
Diemeter
(mm) |
Height
(mm) |
Voltage
(V) |
Capacity
(mAh) |
Operating Temperature
(°C) |
| IFR14500 |
14.5 |
50.5 |
3.2 |
500 |
-20 to 60 |
| IFR14500 |
14.5 |
50.5 |
3.2 |
550 |
-20 to 60 |
| IFR14500 |
14.5 |
50.5 |
3.2 |
600 |
-20 to 60 |
| IFR18500 |
18.5 |
50.5 |
3.2 |
1000 |
-20 to 60 |
| IFR18650 |
18.5 |
65.5 |
3.2 |
1400 |
-20 to 60 |
| IFR18650 |
18.5 |
65.5 |
3.2 |
1500 |
-20 to 60 |
| IFR22650 |
22.5 |
65.5 |
3.2 |
2000 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3000 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3300 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3400 |
-20 to 60 |
Are lithium iron phosphate (LFP) batteries suitable for emergency lighting?
Lithium iron phosphate (LFP) batteries are a suitable option for emergency lighting systems. LFP batteries are known for their high energy density, long cycle life, and good safety performance, making them a reliable choice for emergency lighting.
One of the main advantages of LFP batteries is their ability to deliver a high amount of power quickly, which is important for emergency lighting systems that need to operate in low light or blackout conditions. Additionally, LFP batteries are less prone to overheating and thermal runaway compared to other lithium-ion battery chemistries, making them safer for use in critical applications.
Another advantage of LFP batteries is their long cycle life, meaning they can be charged and discharged many times without significantly degrading their performance. This is important for emergency lighting systems, which may not be used for long periods but need to be ready for use at a moment's notice.
Overall, LFP batteries are a reliable and safe option for emergency lighting systems, and their high power density and long cycle life make them a good choice for a wide range of applications.
LiFePO4 Care Guide: Maintaining Your Lithium Battery:
1.Keep your battery charged: LiFePO4 batteries have a longer lifespan when kept charged between 20% and 80%. Avoid fully discharging your battery, as this can reduce its lifespan.
2.Store your battery properly: If you need to store your LiFePO4 battery for an extended period, keep it in a cool, dry place with a charge level of 40% to 60%. This will help prevent the battery from degrading.
3.Avoid extreme temperatures: High temperatures can cause your LiFePO4 battery to degrade quickly, while extremely low temperatures can reduce its capacity. Avoid exposing your battery to temperatures above 60°C (140°F) or below -20°C (-4°F).
4.Use the right charger: Always use a charger designed for LiFePO4 batteries. Using the wrong charger can damage the battery or reduce its lifespan.
5.Monitor the battery's performance: Keep an eye on your battery's performance over time. If you notice any significant changes in its capacity or charging time, it may be time to replace the battery.
6.Use a battery management system (BMS): If your LiFePO4 battery is being used in a large or complex system, consider using a BMS to manage the battery's performance and prevent overcharging or over-discharging.
Performance Curves of LiFePO4 Cell:
1. LiFePO4 Cell Charge Curve (Charge at 0.1C)
2. LiFePO4 Cell Discharge Curve (Discharge at 0.2C )
3. LiFePO4 Cell Charge Efficiency At Different Temperature
4. LiFePO4 Cell Cycle Life Curve
5. LiFePO4 Cell Capacity Change At Smart Floating Charge At 55 degree
