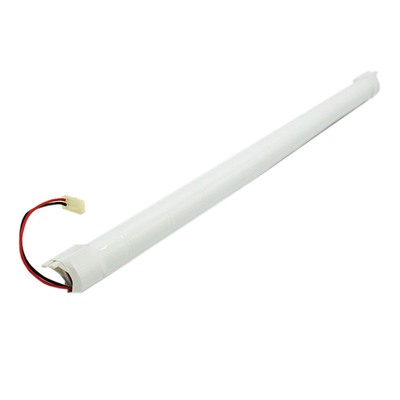

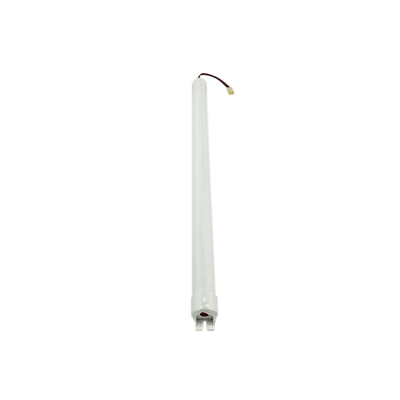

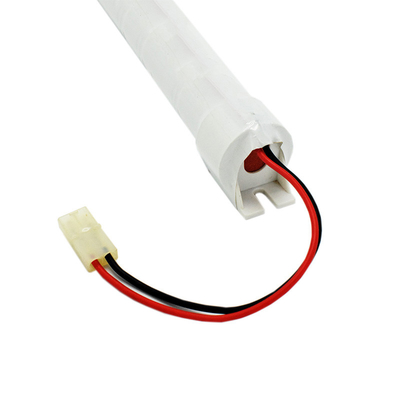

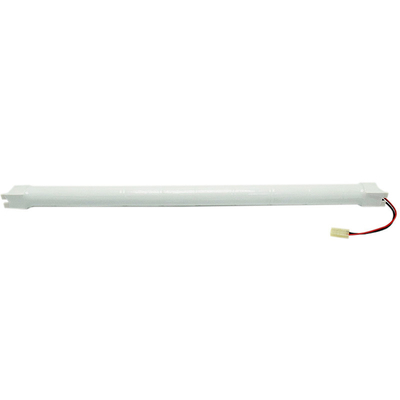

High Cost-Effective NiCd D5000mAh 12V Emergency Exit Light Batteries
Application:
| Pos. |
Application fields |
Application of the product |
| 1 |
Lighting |
emergency lighting, emergency power supply, solar lights, searchlingts, flashlights |
| 2 |
Power tools |
electric drills, planers, saws, power granted |
| 3 |
Electronic toys |
remote control car, remote control boats, aircraft, model aircraft |
| 4 |
Communication equipment |
cordless phones, walkie-talkie |
| 5 |
Other uses |
electric shavers, massagers, electric tooth brush |
List Of Ni-CD High Temperature Cells
| Type |
Model |
Diemeter
(mm) |
Height
(mm) |
Capacity
(mAh) |
Voltage
(V) |
Operating Temperature
(°C) |
| D |
GS-D400T |
33.0 +0 -1.0 |
60.0+0 -1.5 |
4000 |
1.2 |
-20 to 70 |
| GS-D400 |
33.0 +0 -1.0 |
60.0+0 -1.5 |
4000 |
1.2 |
-20 to 55 |
| GS-D450T |
33.0 +0 -1.0 |
60.0+0 -1.5 |
4500 |
1.2 |
-20 to 70 |
| GS-D450 |
33.0 +0 -1.0 |
60.0+0 -1.5 |
4500 |
1.2 |
-20 to 55 |
| GS-D500T |
33.0 +0 -1.0 |
60.0+0 -1.5 |
5000 |
1.2 |
-20 to 70 |
| GS-D500 |
33.0 +0 -1.0 |
60.0+0 -1.5 |
5000 |
1.2 |
-20 to 55 |
| GS-1/2D220T |
33.0 +0 -1.0 |
36.0 +0 -1.5 |
2200 |
1.2 |
-20 to 70 |
| GS-1/2D220 |
33.0 +0 -1.0 |
36.0 +0 -1.5 |
2200 |
1.2 |
-20 to 55 |
| GS-1/2D250 |
33.0 +0 -1.0 |
36.0 +0 -1.5 |
2500 |
1.2 |
-20 to 55 |
Product parameters:
Standard Charge Mode: 0.1C for 16 hours
Cycle Life: ≥500 times
Operating Temperature: (-20℃) - (+70℃)
Storage Temperature: (-30℃) - (+60℃)
Cell Dimension: 33.0 +0 -1.0(D), 60.0+0 -1.5(H)
Expected Life: 5 years
Packaging: Standard export package or customized package
Advantages of Ni-Cd battery:
1.Withstand long periods of deep discharge
2.Working temperature for Ni-Cd battery could be up to 55 degree, and even up to 70 degree, and expected service life could be up to 4 to 5 years.
3. Wide range temperature adaptability.Ordinary nickel cadmium batteries can be used in high or low temperature environment. High temperature batteries can be used at temperatures of 70 degrees Celsius or higher.
4. Reliable safety valve. The safety valve provides maintenance free function. Nickel cadmium battery can be used freely in the process of charge discharge or storage. Due to the special material used in the sealing ring and the effect of sealant, the leakage phenomenon of Ni Cd battery is rare.
Some notes about using Ni-Cd batteries
Ni-Cd batteries are highly toxic. In addition, nickel and cadmium are expensive metals.
Unlike lead-acid batteries, Ni-Cd batteries can overheat, go into thermal runaway mode and self-destruct when charged with a generator - even in an overcurrent cutoff system. However, Ni-Cd battery packs are usually equipped with an internal thermal charger cut-off device that signals if the battery heats up and/or reaches its maximum voltage.
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
