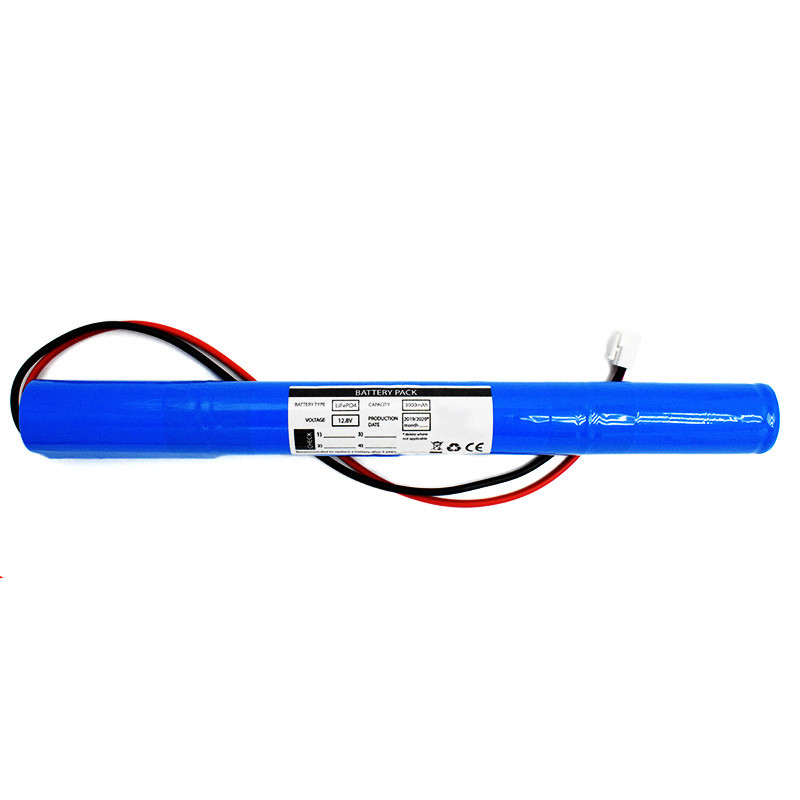

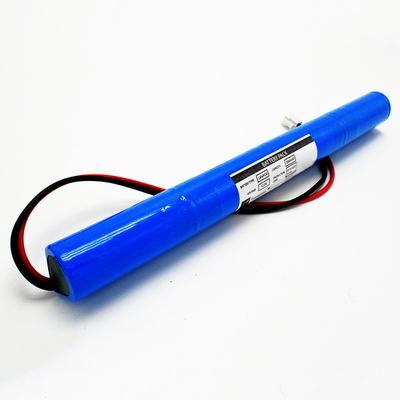

26650 3000mAh 12.8V Emergency Exit Lighting LiFePO4 Battery Pack
Product Parameters:
| Pos. |
Product Parameters |
Data |
| 1 |
Standard Charge Mode |
CC/CV |
| 2 |
Cycle Life |
≥2000 times |
| 3 |
Operating Temperature |
Charge:(0℃)-(45℃)
Discharge(-20℃) - (+60℃)
|
| 4 |
Storage Temperature |
(-20℃) - (+50℃) |
| 5 |
Expected Life |
10 years |
| 6 |
Packaging |
Standard export package or customized package |
Application fields:
| Pos. |
Application fields |
Application of the product |
| 1 |
Energy storage equipment |
energy storage equipment of solar energy and wind power generation system, uninterruptible power system (UPS) used with solar cells as energy storage equipment (BYD has been producing such batteries). |
| 2 |
Electric tools |
high power electric tools (wireless), electric drill, weeder, etc. |
| 3 |
Light electric vehicles |
electric vehicles, electric bicycles, recreational vehicles, golf carts, electric pushers, cleaning vehicles, hybrid electric vehicles (HEV). |
| 4 |
Small equipment |
medical equipment, electric wheelchair, electric scooter, toys (remote control electric airplane, car, boat). |
| 5 |
Other small electrical appliances |
miner's lamp, implantable medical devices (lithium iron phosphate is non-toxic, lithium battery can only meet the requirements of iron and lithium), which can replace lead-acid, nickel hydrogen, nickel cadmium, lithium cobalt, lithium manganese batteries in small electrical appliances. |
List Of LiFeO4 High Temperature Cells:
| Type |
Diemeter
(mm) |
Height
(mm) |
Voltage
(V) |
Capacity
(mAh) |
Operating Temperature
(°C) |
| IFR14500 |
14.5 |
50.5 |
3.2 |
500 |
-20 to 60 |
| IFR14500 |
14.5 |
50.5 |
3.2 |
550 |
-20 to 60 |
| IFR14500 |
14.5 |
50.5 |
3.2 |
600 |
-20 to 60 |
| IFR18500 |
18.5 |
50.5 |
3.2 |
1000 |
-20 to 60 |
| IFR18650 |
18.5 |
65.5 |
3.2 |
1400 |
-20 to 60 |
| IFR18650 |
18.5 |
65.5 |
3.2 |
1500 |
-20 to 60 |
| IFR22650 |
22.5 |
65.5 |
3.2 |
2000 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3000 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3300 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3400 |
-20 to 60 |
Product performance:
1. LiFePO4 is the safest lithium battery technology comparing with lithium cobalt,lithium manganese and Li(NiCoMn)O2. LiFePO4 battery has very high charge and discharge efficiency at high temperature, highest working temperature could be up to 55 degree and 70 degree.
It has very good cycle life of more than 2000 cycles. Expected service life could be more than 10 years.
2.Proven performance in the toughest conditions, combining durability, reliability, and safety
3.Large capacity. Lithium iron phosphate battery has a larger capacity than ordinary battery (lead acid, etc.), according to the capacity density of battery, the energy density of lead-acid battery is about 40wh / kg, and the energy density of mainstream lithium iron phosphate battery in the market is above 90Wh / kg.
4. Environmental protection, non-toxic and pollution-free. Lithium iron phosphate battery is generally considered to be free of any heavy metals and rare metals (Ni MH batteries need rare metals), non-toxic (SGS certification), pollution-free, in line with European ROHS regulations, green environmental protection batteries.
Performance Curves of LiFePO4 Cell:
1. LiFePO4 Cell Charge Curve (Charge at 0.1C)
2. LiFePO4 Cell Discharge Curve (Discharge at 0.2C )
3. LiFePO4 Cell Charge Efficiency At Different Temperature
4. LiFePO4 Cell Cycle Life Curve
5. LiFePO4 Cell Capacity Change At Smart Floating Charge At 55 degree
Our Products are Being Shipped:
Godson Technology Co., Ltd. is a globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4, Lion-polymer and other relevant lithium batteries.
Dating back to the year of 1993, we have already had 20 years' experience in battery industry. We have started to focus on emergency lighting battery and emergency lighting products since 2010, and concentrate on E-bike battery and power tool battery since 2013.
Relying on the great reliability and the feature of super high cost-effective, our products have been exported to many countries, such as USA, UK, Turkey, Germany, Ireland, Italy, Spain, Poland and Singapore.
