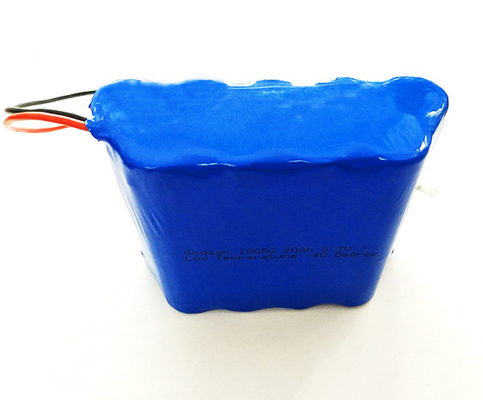

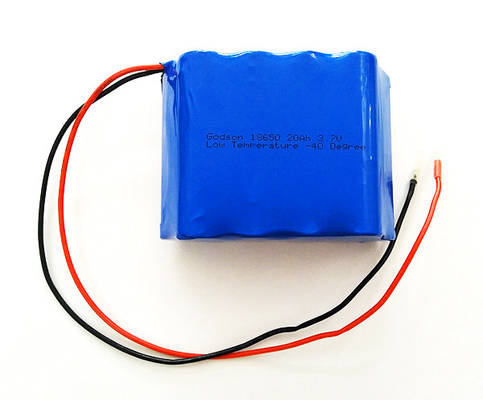

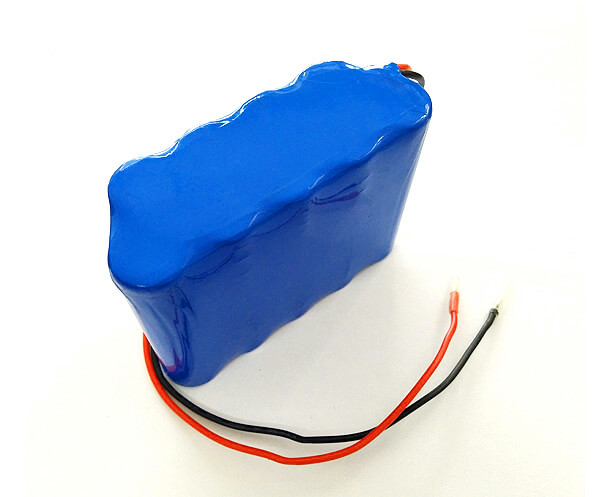

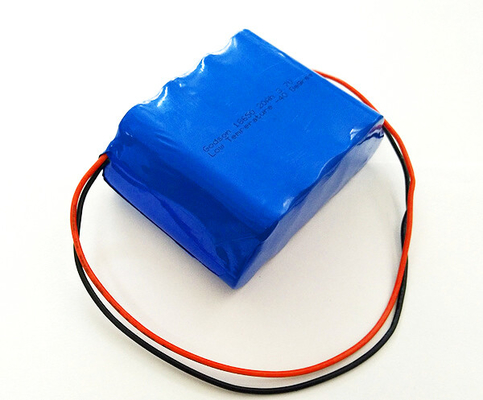

Emergency Lighting Lithium Low Temperature Battery ICR18650 20Ah 3.7V
List Of LiFeO4 High Temperature Cells:
| Type |
Diemeter
(mm) |
Height
(mm) |
Voltage
(V) |
Capacity
(mAh) |
Operating Temperature
(°C) |
| IFR14500 |
14.5 |
50.5 |
3.2 |
500 |
-20 to 60 |
| IFR14500 |
14.5 |
50.5 |
3.2 |
550 |
-20 to 60 |
| IFR14500 |
14.5 |
50.5 |
3.2 |
600 |
-20 to 60 |
| IFR18500 |
18.5 |
50.5 |
3.2 |
1000 |
-20 to 60 |
| IFR18650 |
18.5 |
65.5 |
3.2 |
1400 |
-20 to 60 |
| IFR18650 |
18.5 |
65.5 |
3.2 |
1500 |
-20 to 60 |
| IFR22650 |
22.5 |
65.5 |
3.2 |
2000 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3000 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3300 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3400 |
-20 to 60
|
Application fields:
| Pos. |
Application fields |
Application of the product |
| 1 |
Energy storage equipment |
energy storage equipment of solar energy and wind power generation system, uninterruptible power system (UPS) used with solar cells as energy storage equipment (BYD has been producing such batteries). |
| 2 |
Electric tools |
high power electric tools (wireless), electric drill, weeder, etc. |
| 3 |
Light electric vehicles |
electric vehicles, electric bicycles, recreational vehicles, golf carts, electric pushers, cleaning vehicles, hybrid electric vehicles (HEV). |
| 4 |
Small equipment |
medical equipment, electric wheelchair, electric scooter, toys (remote control electric airplane, car, boat). |
| 5 |
Other small electrical appliances |
miner's lamp, implantable medical devices (lithium iron phosphate is non-toxic, lithium battery can only meet the requirements of iron and lithium), which can replace lead-acid, nickel hydrogen, nickel cadmium, lithium cobalt, lithium manganese batteries in small electrical appliances.
|
Maintaining Your Lithium Battery
1. Precautions for lithium battery charging:
Lithium batteries are strictly prohibited to be charged from the discharge terminal, and must be charged from the charging socket with the matching special charger. When the charging indicator bar on the charger stops scrolling, please remove the charging plug in time to avoid overcharging the battery.
2. Notes on discharge:
The lithium battery pack has an overcurrent protection function. When the use current of the electrical equipment exceeds the maximum output current of the product, the overcurrent protection circuit will act and make the electrical equipment appear to be unable to work normally.
3. Precautions for daily use:
The output of the discharge terminal is not controlled by the switch on the panel, and the output is closed only when the battery voltage is lower than 9.0V. The switch on the panel controls the output of the display and USB socket. When the switch is turned on and the battery voltage is less than 9.1V, the display will flash at a frequency of one second and one second to remind you that you should charge in time, and it will display when the battery voltage is less than 9.0V The screen goes out and the USB socket turns off the output, the purpose is to protect the lithium battery from over-discharge. Although it has output short-circuit protection function, it should not frequently short-circuit the + and-power output in daily use.
4. Recycling matters needing attention:
The normal cycle of charging and discharging lithium batteries is about 500 to 800 times, and the lithium batteries at the end of their life should be recycled and disposed of in accordance with local laws.
Performance Curves of Lithium Cell:
1.Lithium Cell Charge Curve (Charge at 1C)
2. Lithium Cell Discharge Curve (Discharge at 1C )
3. Lithium Cell Cycle Life Curve
