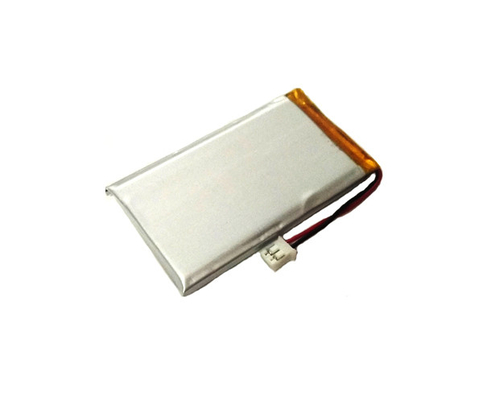

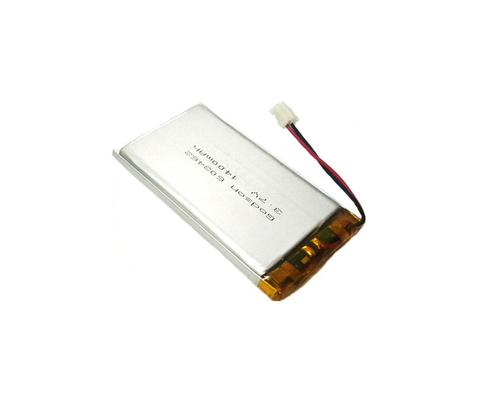

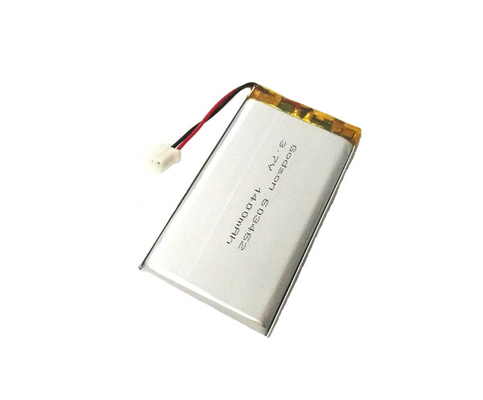

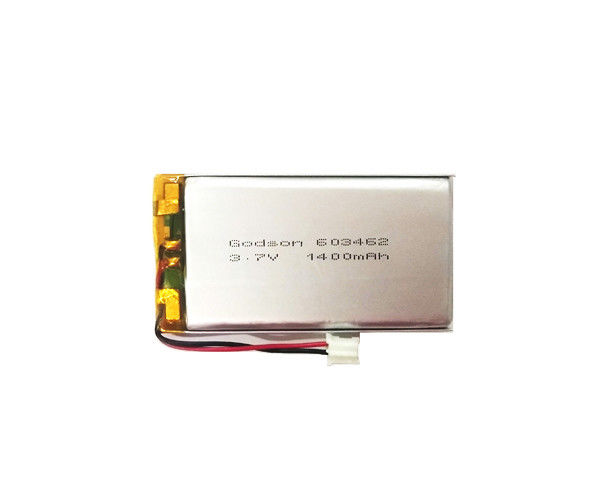

Lighting Fixture 603462 Lithium Polymer Battery 1400mAh 3.7V For Sale
Li-polymer Battery List
| Type |
Max Thickness (mm) |
Max Width (mm) |
Max Length (mm) |
Voltage
(V)
|
Capacity
(mAh)
|
Weight (g) |
| Li-P601220 |
6.2 |
12.5 |
20.5 |
3.7 |
100 |
3.5 |
| Li-P602025 |
6.2 |
20.5 |
25.5 |
3.7 |
220 |
5.8 |
| Li-P602030 |
6.2 |
20.5 |
30.5 |
3.7 |
300 |
6.2 |
| Li-P603030 |
6.2 |
30.5 |
30.5 |
3.7 |
600 |
13.0 |
| Li-P603040 |
6.2 |
30.5 |
40.5 |
3.7 |
650 |
13.2 |
| Li-P603048 |
6.2 |
30.5 |
48.5 |
3.7 |
850 |
17.0 |
| Li-P603448 |
6.2 |
34.5 |
48.5 |
3.7 |
950 |
17.2 |
| Li-P603450 |
6.2 |
34.5 |
50.5 |
3.7 |
1000 |
18.5 |
| Li-P603759 |
6.2 |
37.5 |
59.5 |
3.7 |
1400 |
28.0 |
| Li-P605060 |
6.2 |
50.5 |
60.5 |
3.7 |
2000 |
32.0 |
| Li-P633451 |
6.5 |
34.5 |
51.5 |
3.7 |
1050 |
19.0 |
| Li-P652035 |
6.7 |
20.5 |
35.5 |
3.7 |
420 |
8.8 |
| Li-P682940 |
7.0 |
29.5 |
40.5 |
3.7 |
800 |
14.0 |
Product performance:
1. Good safety performance. Built in circuit protection board, with short circuit, overcharge,over discharge, shock, vibration, acupuncture, high temperature,no explosion ,etc.
2. Stable performance. Long cycle life, after 500 times of ontinuous charge and discharge,the battery capacity shall not be less than 80% of the rated capacity.
3. Small thickness and high volume utilization. Polymer lithium battery overcomes Lithium battery in the thickness of the bottleneck, to achieve ultra-thin settings, and can assemble it into a credit card. Polymer cell can achieve thickness up to less than 1 mm, in line with the current demand for mobile phones.
4. Light weight. Polymer lithium battery does not need to use metal shell as outer packaging.In quality, it is 40% lighter than that of steel shell lithium battery with the same capacity shell batteries are 20% lighter.
5. Quality assurance. It adopts A-product cell with high capacity and low internal resistance.
6. Shape can be customized. Polymer lithium battery models and capacities are available,it has strong applicability.
7. No memory effect. It can be charged and discharged at any time.
Application :
Mainly used in portable mobile electronic equipment, and consumer digital products:
POS machines,
smart speakers,
wine bottle openers,
children's watches,
beauty machines,
mobile DVDS,
GPS trackers,
hand-held small fan batteries,
game controllers,
lighting fixtures,
walkie-talkies, etc.
Lithium battery use environment and maintenance methods:
1.The temperature should be suitable, the charging temperature of the lithium battery is 0℃～45℃, and the discharge temperature of the lithium battery is -20℃～60℃;
2.It should be in a clean, dry and ventilated environment, avoid contact with corrosive substances, and stay away from fire and heat sources;
3.Lithium battery packs have no memory effect and can be charged as they are used, but it should be noted that lithium batteries cannot be over-discharged. Over-discharge will cause a very large capacity loss;
4.Do not mix the battery with metal objects, so as to prevent the metal objects from touching the positive and negative electrodes of the battery, causing a short circuit, damaging the battery or even causing danger;
5.Avoid frequent overcharging. Overcharging will cause the internal temperature of the battery to rise to a high level, which is harmful to the lithium-ion battery and charger. Therefore, a full charge is enough to turn your lithium battery into a small bomb.
Performance Curves of Lithium Cell:
1.Lithium Cell Charge Curve (Charge at 1C)
2. Lithium Cell Discharge Curve (Discharge at 1C )
3. Lithium Cell Cycle Life Curve
