Product Details:
|
| Type: | Lithium Polymer Battery | Nominal Voltage: | 3.7V |
|---|---|---|---|
| Nominal Capacity: | 550mAh | Weight: | ≈12.5g |
| Cycle Life: | More Than 500 Times | Size: | 5.0*30*40mm |
| High Light: | 12.5g Lithium Ion Battery 3.7 V 550mAh,Lithium Ion Battery 3.7 V 550mAh,12.5g 550mah lithium battery |
||

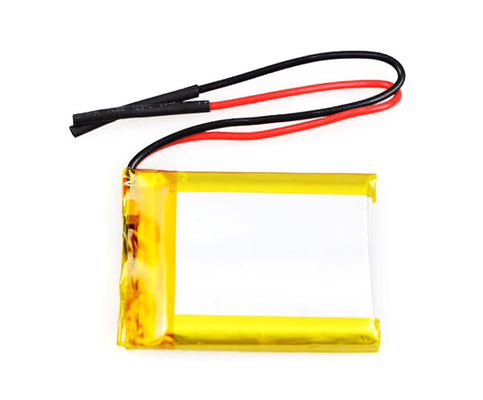

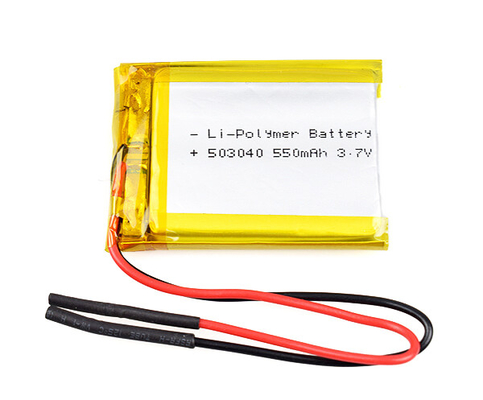

503040 Lithium Polymer Battery 550mAh 3.7V With Stable Performance
Li-polymer Battery List
| Type | Max Thickness (mm) | Max Width (mm) | Max Length (mm) |
Voltage (V) |
Capacity (mAh) |
Weight (g) |
| Li-P401017 | 4.2 | 10.5 | 17.5 | 3.7 | 40 | 1.5 |
| Li-P401020 | 4.2 | 10.5 | 20.5 | 3.7 | 50 | 1.5 |
| Li-P401215 | 4.2 | 12.5 | 15.5 | 3.7 | 40 | 1.5 |
| Li-P401230 | 4.2 | 12.5 | 30.5 | 3.7 | 120 | 4.0 |
| Li-P401225 | 4.2 | 12.5 | 25.5 | 3.7 | 90 | 3.3 |
| Li-P401525 | 4.2 | 15.5 | 25.5 | 3.7 | 110 | 3.7 |
| Li-P402025 | 4.2 | 20.5 | 25.5 | 3.7 | 150 | 4.5 |
| Li-P402030 | 4.2 | 20.5 | 30.5 | 3.7 | 200 | 5.8 |
| Li-P431223 | 4.5 | 12.5 | 23.5 | 3.7 | 70 | 2.8 |
| Li-P457585 | 4.2 | 75.5 | 85.5 | 3.7 | 3000 | 48.0 |
| Li-P483030 | 5.0 | 30.5 | 30.5 | 3.7 | 380 | 6.6 |
| Li-P501230 | 5.2 | 12.5 | 30.5 | 3.7 | 130 | 4.2 |
| Li-P502030 | 5.2 | 20.5 | 30.5 | 3.7 | 250 | 6.0 |
| Li-P503030 | 5.2 | 30.5 | 30.5 | 3.7 | 430 | 8.7 |
| Li-P503040 | 5.2 | 30.5 | 40.5 | 3.7 | 550 | 12.5 |
| Li-P503048 | 5.2 | 30.5 | 48.5 | 3.7 | 700 | 13.6 |
| Li-P503759 | 5.2 | 37.5 | 59.5 | 3.7 | 1200 | 24.0 |
| Li-P505062 | 5.2 | 50.5 | 62.5 | 3.7 | 2000 | 35.0 |
| Li-P505573 | 5.2 | 55.5 | 73.5 | 3.7 | 2500 | 40.0 |
| Li-P552035 | 5.7 | 20.5 | 35.5 | 3.7 | 350 | 6.5 |
| Li-P552535 | 5.7 | 25.5 | 35.5 | 3.7 | 450 | 10.0 |
| Li-P552730 | 5.7 | 27.5 | 30.5 | 3.7 | 380 | 6.6 |
Product performance:
1. High working voltage for single battery cells
2. Pollution-free
3. Long cycle life
4. No memory effect
5. PCM inside with short-circuit protection function,over-discharge, over charge, over current protection
6. Good consistency, low self discharge
7. Light weight, small and customized size
8. Wide application for electronics and industry
Application :
Mobile phones, tablets, Bluetooth earphone, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, LED lights, quad copters, drones ,etc.
Handling of Cells
Consideration of strength of film package
Soft Aluminium foil
Easily damaged by sharp edge parts such as pins and needles, Ni-tabs, comparing with metal-
can-cased LIB.
Sealed edge may be damaged by heat above 100°C, bend or fold sealed edge.
Prohibition short circuit
Never make short circuit cell. It generates very high current which causes heating of the cells
and may cause electrolyte leakage, gassing or explosion that are very dangerous.
The LIP tabs may be easily short-circuited by putting them on conductive surface.
Such outer short circuit may lead to heat generation and damage of the cell.
An appropriate circuitry with PCM shall be employed to protect accidental short circuit of the
battery pack.
Mechanical shock
LIP cells have less mechanical endurance than metal-can-cased LIB.
Falling, hitting, bending, etc. may cause degradation of LIP characteristics.
Handling of tabs
The battery tabs are not so stubborn especially for aluminum tab.
Don’t bend tab.
Do not bend tabs unnecessarily.
Performance Curves of Lithium Cell:
1.Lithium Cell Charge Curve (Charge at 1C)
2. Lithium Cell Discharge Curve (Discharge at 1C )
3. Lithium Cell Cycle Life Curve
