Product Details:
|
| Place Of Origin: | Guangdong, China (Mainland) | Model Number: | ICR18650-2600 |
|---|---|---|---|
| Type: | LiFePo4 | Capacity: | 2600mAh |
| Voltage: | 3.7V | Cycle Life: | ≥2000 Times |
| High Light: | 2600mAh Emergency Light Lithium Battery,3.7V Emergency Light Lithium Battery,3.7V 2600mAh Lithium Battery |
||

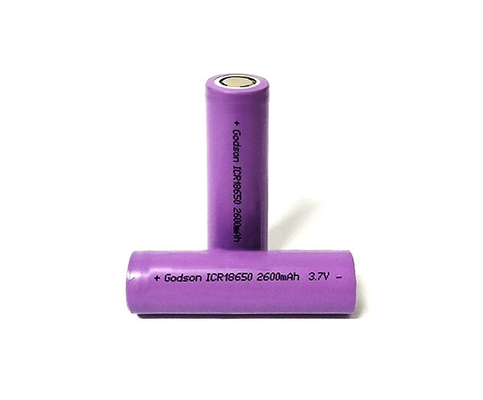

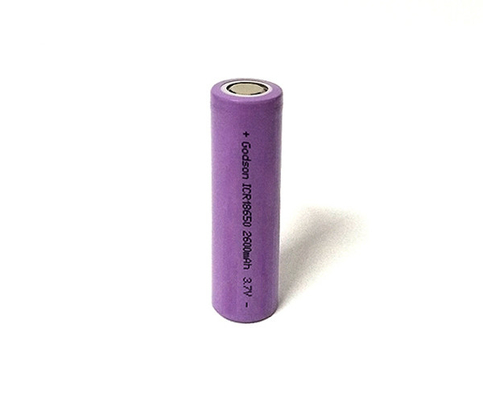

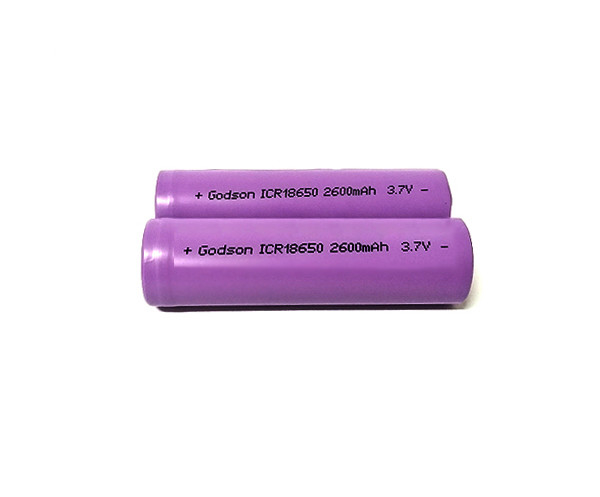

Lithium Iron Phosphate Emergency Light Battery ICR18650 2600mAh 3.7V-Good Cycle Life
Product parameters:
| Pos. | Product Parameters | Data |
| 1 | Standard Charge Current | 0.1C for 16 hours |
| 2 | Cycle Life | ≥2000 times |
| 3 | Operating Temperature |
Charge:(0℃)-(45℃) Discharge(-20℃) - (+60℃) |
| 4 | Storage Temperature | (-20℃) - (+50℃) |
| 4 | Expected Life | 10 years |
| 5 | Cell Dimension | 65(W), 18(H)mm |
| 6 | Cell Weight | ≈40g |
| 7 | Packaging | Standard export package or customized package |
Application fields:
| Pos. | Application fields | Application of the product |
| 1 | Energy storage equipment | energy storage equipment of solar energy and wind power generation system, uninterruptible power system (UPS) used with solar cells as energy storage equipment (BYD has been producing such batteries). |
| 2 | Electric tools | high power electric tools (wireless), electric drill, weeder, etc. |
| 3 | Light electric vehicles | electric vehicles, electric bicycles, recreational vehicles, golf carts, electric pushers, cleaning vehicles, hybrid electric vehicles (HEV). |
| 4 | Small equipment | medical equipment, electric wheelchair, electric scooter, toys (remote control electric airplane, car, boat). |
| 5 | Other small electrical appliances | miner's lamp, implantable medical devices (lithium iron phosphate is non-toxic, lithium battery can only meet the requirements of iron and lithium), which can replace lead-acid, nickel hydrogen, nickel cadmium, lithium cobalt, lithium manganese batteries in small electrical appliances. |
Are lithium iron phosphate (LFP) batteries suitable for emergency lighting?
Lithium iron phosphate (LiFePO4 or LFP) is well suited for emergency lighting. Compared to alternatives such as nickel-cadmium (NiCd) and nickel-metal hydride (NiMH), lithium iron phosphate (LFP) batteries offer several advantages:
1. Energy efficiency. LFP is more efficient than NiCd in two ways.
--Self-discharge. All rechargeable batteries lose charge over time, but the rate with LFP is only 3-5% per month. NiCd loses 15% in the first 24 hours, then drops to 10-20% per month (depending on temperature). The result is that the charger in an emergency unit with NiCd or NiMH batteries operates almost continuously, while the charger in the LFP circuit operates at low current during short and infrequent bursts.
--Charging efficiency. During the charging process of any battery, energy is lost in the form of heat. the charging efficiency of LFP is very high, about 95%. the charging efficiency of NiCd is also very high, but only in the early stages of charging. Once the battery reaches 70% capacity, it starts to generate heat and the charging efficiency drops to 85%. This is important because in normal use, the NiCd cells in emergency light accessories will continue to trickle charge to keep them near 100% capacity.
2. Long life.
--LFP batteries have little to no memory effect, so their performance remains almost constant until the end of their service life, which is usually defined as 70% of their rated capacity. Typically, LFP batteries have a life span of 8-10 years.
--The performance (storage) of NiCd and NiMH decreases rapidly with each charge/discharge cycle, so they typically need to be replaced after 3 or 4 years. the emergency lighting routine testing required by BS 5266 helps shorten the life of NiCd batteries. NiCd batteries in new construction projects that have been fully installed during the construction phase typically fail in the first year of their service life, when the main power supply is usually completely shut down overnight. The resulting overnight discharges and daily recharges can degrade NiCd batteries to the point where they can be replaced in the first year of use.
3.Large capacity. Lithium iron phosphate battery has a larger capacity than ordinary battery (lead acid, etc.), according to the capacity density of battery, the energy density of lead-acid battery is about 40wh / kg, and the energy density of mainstream lithium iron phosphate battery in the market is above 90Wh / kg.
4. No memory effect. No matter what state the battery is in, it can be used as soon as it is charged. There is no need to discharge it before charging.
5. Environmental protection, non-toxic and pollution-free. Lithium iron phosphate battery is generally considered to be free of any heavy metals and rare metals (Ni MH batteries need rare metals), non-toxic (SGS certification), pollution-free, in line with European ROHS regulations, green environmental protection batteries.
6.High temperature resistance. The peak temperature of lithium iron phosphate can reach 350 to 500 ℃, while that of lithium manganate and lithium cobalt oxide is only about 200 ℃.
Performance Curves of LiFePO4 Cell:
1. LiFePO4 Cell Charge Curve (Charge at 0.1C)
2. LiFePO4 Cell Discharge Curve (Discharge at 0.2C )
3. LiFePO4 Cell Charge Efficiency At Different Temperature
4. LiFePO4 Cell Cycle Life Curve
5. LiFePO4 Cell Capacity Change At Smart Floating Charge At 55 degree
FAQ
Q1:Are these new cells?
yes 100% ,factory direct.
Q2: Are you a trading company or manufacturer?
A: We are globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4,, Lion-polymer and other relevant lithium batteries.
Q3: Can you do OEM?
A: Yes, OEM is acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.
Q4:Where can I get the price?
A: Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get
