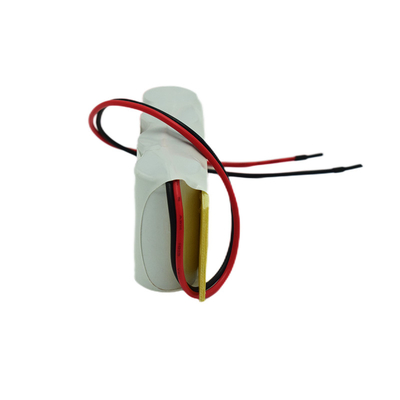

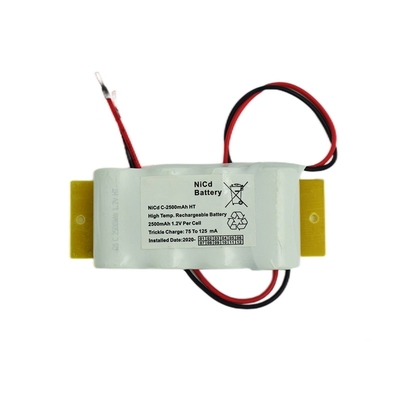

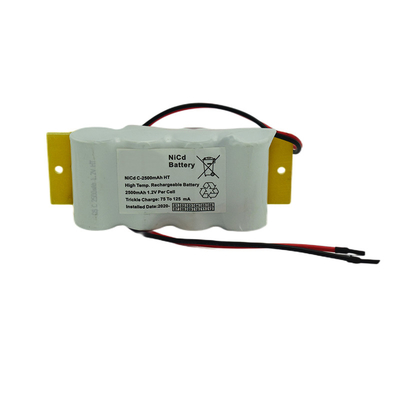

Emergency Lighting Battery | Ni-CD C2500mAh 4.8V | Long Service Life
Product parameters:
| Pos. |
Product Paramaters |
Data |
| 1 |
Standard Charge Mode |
0.1C for 16 hours |
| 2 |
Cycle Life |
≥500 times |
| 3 |
Operating Temperature |
(-20℃) - (+70℃) |
| 4 |
Storage Temperature |
(-30℃) - (+60℃) |
| 5 |
Cell Dimension |
23 +0 -1.0(D), 42.5±0.5(H) |
| 6 |
Cell Weight |
≈48g |
| 7 |
Packaging |
Standard export package or customized package |
List Of Ni-CD High Temperature Cells
| Type |
Model |
Diemeter
(mm) |
Height
(mm) |
Capacity
(mAh) |
Voltage
(V) |
Operating Temperature
(°C) |
| C |
GS-C220T |
25.8 +0 -1.0 |
49.5±0.5 |
2200 |
1.2 |
-20 to 70 |
| GS-C220 |
25.8 +0 -1.0 |
49.5±0.5 |
2200 |
1.2 |
-20 to 55 |
| GS-C250T |
25.8 +0 -1.0 |
49.5±0.5 |
2500 |
1.2 |
-20 to 70 |
| GS-C250 |
25.8 +0 -1.0 |
49.5±0.5 |
2500 |
1.2 |
-20 to 55 |
| GS-C280T |
25.8 +0 -1.0 |
49.5±0.5 |
2800 |
1.2 |
-20 to 70 |
| GS-C280 |
25.8 +0 -1.0 |
49.5±0.5 |
2800 |
1.2 |
-20 to 55 |
| GS-C300T |
25.8 +0 -1.0 |
49.5±0.5 |
3000 |
1.2 |
-20 to 70 |
| GS-C300 |
25.8 +0 -1.0 |
49.5±0.5 |
3000 |
1.2 |
-20 to 55 |
Advantages of Ni-Cd battery:
1.Ni-Cd battery has high charge and discharge efficiency and good safety performance at high temperature and has long service life under condition of long term floating charge, which makes it very suitable for emergency lighting application.
2.Working temperature for Ni-Cd battery could be up to 55 degree, and even up to 70 degree, and expected service life could be up to 4 to 5 years.
3.Withstand long periods of deep discharge
4.More charge/discharge cycles than other rechargeable batteries to extend battery life
5.Higher energy density, lighter and more compact than lead-acid batteries Ni-Cd is preferred when size and weight are critical factors, such as in aircraft
6.Working temperature for Ni-Cd battery could be up to 55 degree, and even up to 70 degree, and expected service life could be up to 4 to 5 years.Ni-Cd battery has high quality and high reliability.
7.Wide range temperature adaptability.Ordinary nickel cadmium batteries can be used in high or low temperature environment. High temperature batteries can be used at temperatures of 70 degrees Celsius or higher.
8.Lower self-discharge rate than nickel-metal hydride(20% per month vs. 30% per month)
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
