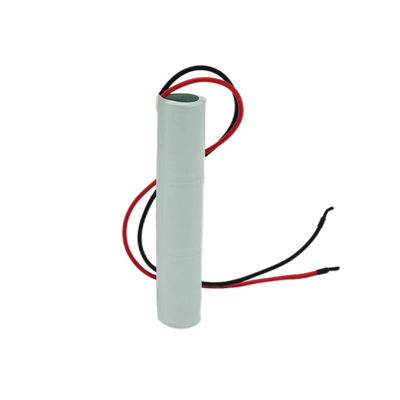

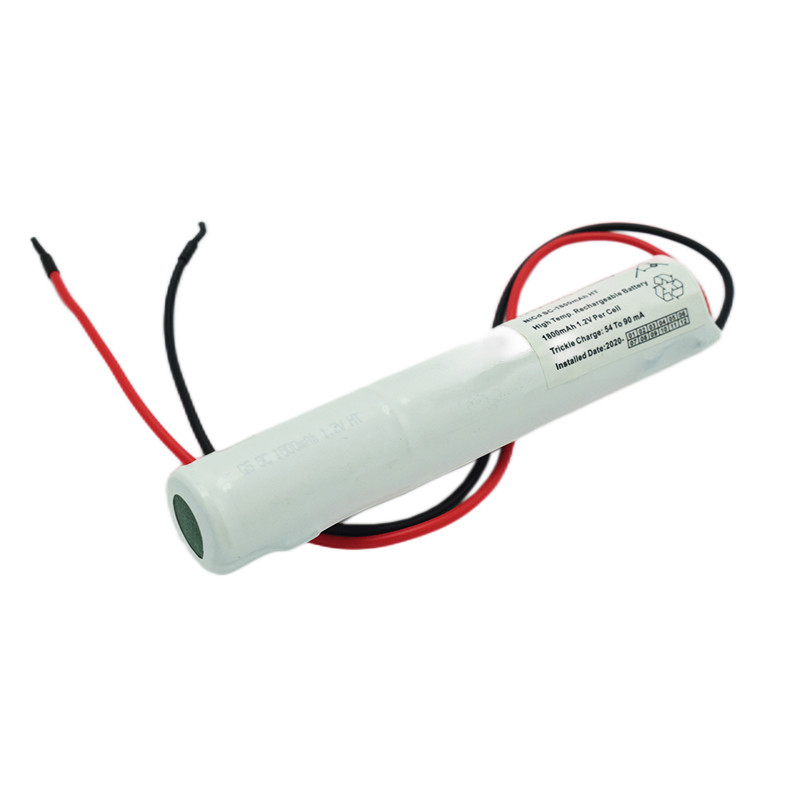

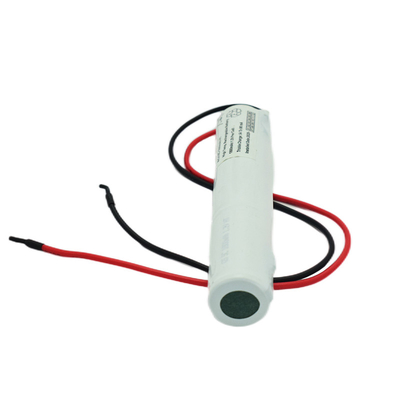

NiCd Battery Stick Pack - Emergency Exit Sign Battery 3.6V SC1800mAh
Product parameters:
| Pos. |
Product Paramaters |
Data |
| 1 |
Standard Charge Mode |
0.1C for 16 hours |
| 2 |
Cycle Life |
≥500 times |
| 3 |
Operating Temperature |
(-20℃) - (+70℃) |
| 4 |
Storage Temperature |
(-30℃) - (+60℃) |
| 5 |
Cell Dimension |
23.0 +0 -1.0(D), 42.5+0 -1.5(H) |
| 6 |
Cell Weight |
≈47.5g |
| 7 |
Expected Life |
5 years |
| 8 |
Packaging |
Standard export package or customized package |
List Of Ni-CD High Temperature Cells
| Type |
Model |
Diemeter
(mm) |
Height
(mm) |
Capacity
(mAh) |
Voltage
(V) |
Operating Temperature
(°C) |
| SC |
GS-4/5SC120T |
23.0 +0 -1.0 |
33.5±0.5 |
1200 |
1.2 |
-20 to 70 |
| GS-SC120T |
23.0 +0 -1.0 |
42.5±0.5 |
1200 |
1.2 |
-20 to 70 |
| GS-SC120 |
23.0 +0 -1.0 |
42.5±0.5 |
1200 |
1.2 |
-20 to 55 |
| GS-SC130T |
23.0 +0 -1.0 |
42.5±0.5 |
1300 |
1.2 |
-20 to 70 |
| GS-SC130 |
23.0 +0 -1.0 |
42.5±0.5 |
1300 |
1.2 |
-20 to 55 |
| GS-SC140T |
23.0 +0 -1.0 |
42.5±0.5 |
1400 |
1.2 |
-20 to 70 |
| GS-SC140 |
23.0 +0 -1.0 |
42.5±0.5 |
1400 |
1.2 |
-20 to 55 |
| GS-SC150T |
23.0 +0 -1.0 |
42.5±0.5 |
1500 |
1.2 |
-20 to 70 |
| GS-SC150 |
23.0 +0 -1.0 |
42.5±0.5 |
1500 |
1.2 |
-20 to 55 |
| GS-SC160T |
23.0 +0 -1.0 |
42.5±0.5 |
1600 |
1.2 |
-20 to 70 |
| GS-SC160 |
23.0 +0 -1.0 |
42.5±0.5 |
1600 |
1.2 |
-20 to 55 |
| GS-SC170T |
23.0 +0 -1.0 |
42.5±0.6 |
1700 |
1.2 |
-20 to 70 |
| GS-SC170 |
23.0 +0 -1.0 |
42.5±0.6 |
1700 |
1.2 |
-20 to 55 |
| GS-SC180T |
23.0 +0 -1.0 |
42.5±0.5 |
1800 |
1.2 |
-20 to 70 |
| GS-SC180 |
23.0 +0 -1.0 |
42.5±0.5 |
1800 |
1.2 |
-20 to 55 |
| GS-SC190T |
23.0 +0 -1.0 |
42.5±0.5 |
1900 |
1.2 |
-20 to 70 |
| GS-SC190 |
23.0 +0 -1.0 |
42.5±0.5 |
1900 |
1.2 |
-20 to 55 |
What Is the Basic Characteristic of Ni-Cad Battery?
1.Ni-Cad Battery can be repeated more than 500 times charge and discharge, it is very economical.
2.The internal resistance is small, which can be used for discharging large current. When it discharge, the voltage is small, as a DC power supply, it is a kind of high quality Ni-Cd Rechargeable Battery Pack.
3.Because of the completely sealed type, there will be no electrolyte leakage phenomenon, and no need to add electrolyte.
4.Compared with other types of battery, Ni-Cd battery can withstand overcharge or let electricity, the operation is simple and convenient.
5.Long time placement will not deteriorate the performance, and when the power is fully charged, the original characteristics can be restored.
6.Ni-Cd battery can be used in a wide range of temperature.
Application:
1. Lighting: emergency lighting, emergency power supply, solar lights, searchlingts, flashlights
2.Power tools: electric drills, planers, saws, power granted
3. Electronic toys: remote control car, remote control boats, aircraft, model aircraft
4. Communication equipment: cordless phones, walkie-talkie
5. Other uses: electric shavers, massagers, electric tooth brush
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
FAQ
Q1: Can you do OEM?
A: Yes, OEM is acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.
Q2: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.
Q3:Where can I get the price?
A: Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get
the product specifications such as voltage capacity application etc.
