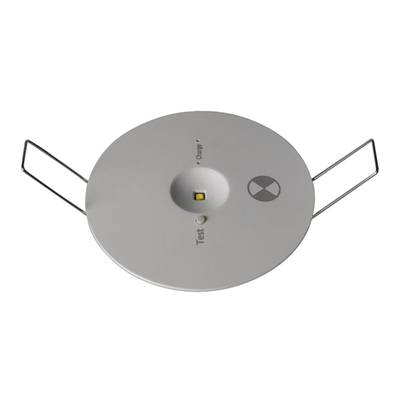

Non-Maintained Emergency LED Downlight White 2W 130mm DGS32A
Technical Specifications
| Mains Supply |
220-240VAC ,50/60Hz |
| Power |
2W |
| Duration Time |
3 Hours |
| Recharge Period |
16 Hours |
| Battery Size & Type |
LiFePO4 3.2V1.5Ah |
| LED Power |
1-3W (emergency) |
| CCT |
5700k |
| CRI |
70 |
| Luminous Flux |
1851m (emergency) |
| Beam Angle |
142* |
| Protection Class |
Class Ⅱ |
| Operating Temperature |
0-40 ℃ |
| Cut Out |
Φ76-130 mm |
Features
-Recessed or ceiling mounting
-Built in LiFePO4 battery, non-replaceable
-Non-maintained and manual test switch
-Intelligent charge and discharge
-3 hours emergency duration
-OSRAM high power LED
-D32 emergency classification

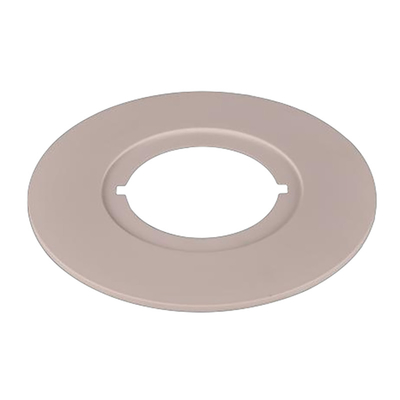

-Φ84mm small panel with Φ145mm trim
-IP65 ceiling mounting box is optional
-Self test is customizable

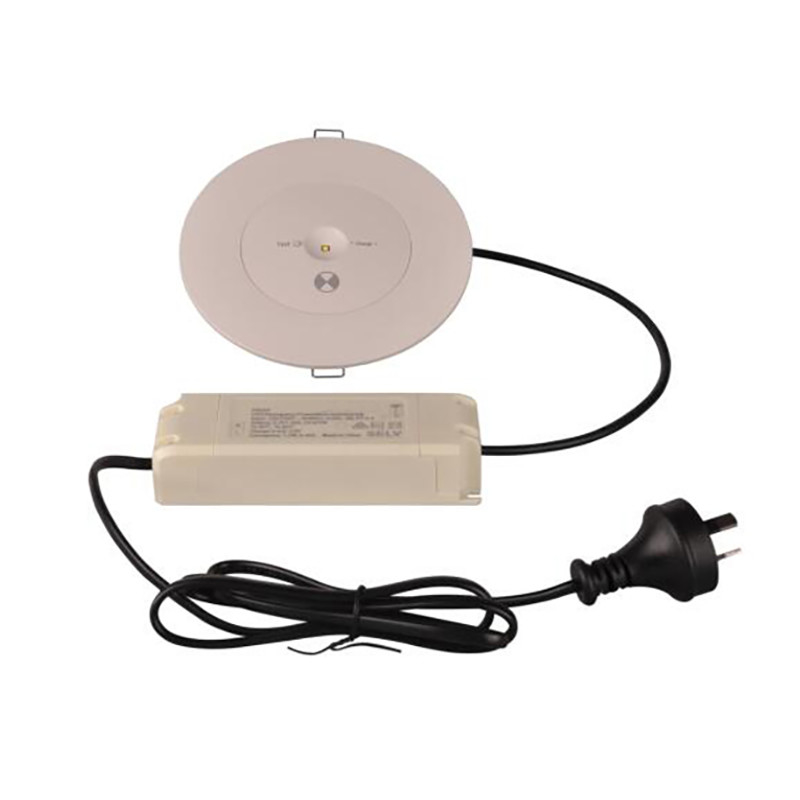

-With 1.2meter flex and plug
Materials
-Driver housing: PC, 850℃ glow wire test
-Panel: PC+ABS, 850℃ glow wire test
Standard Compliance
-AS2293.3
-AS 60598.2.22
-AS/NZS 60598.1
-AS/NZS 60598.2.2
-AS CISPR 15
-IEC62133
-AS61347-2-7
Dimensions
Accessories

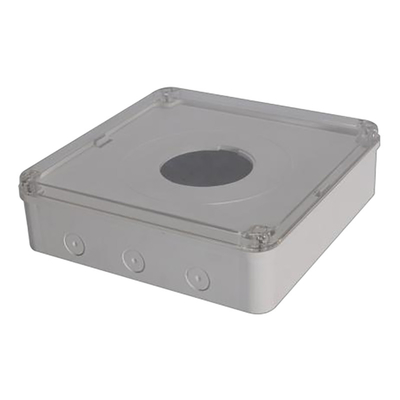

IP65 ceiling mounting box
Photometric Datasheet
