IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS

Certification
China Godson Technology Co., Ltd certification
China Godson Technology Co., Ltd certification
I'm Online Chat Now

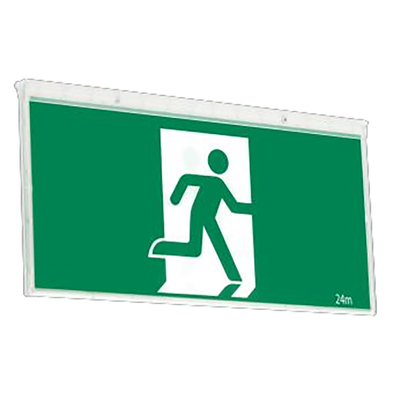

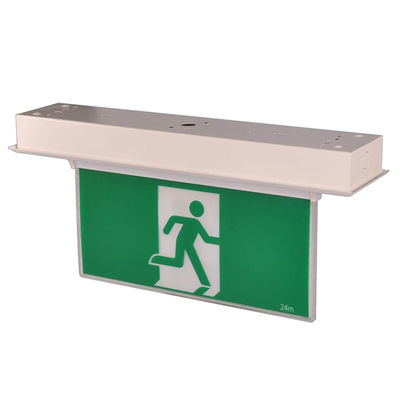

IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS

IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS
IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS

Large Image :  IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Godson or OEM
Model Number: Recessed Blade With Spitfire 4W EGS4RS
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Payment Terms: T/T

IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS

Description
Mains Supply: 220-240VAC ,50/60Hz Power: 4W
Duration Time: 3 Hours Recharge Period: 16 Hours
Battery Size & Type: LiFePO4 3.2V 3.0 Ah Operating Temperature: 0-40 ℃
Highlight:

IP20 Lithium Ion Battery Emergency Light

,

Recessed Lithium Ion Battery Emergency Light


LED Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS
Technical Specifications


Mains Supply220-240VAC ,50/60Hz
Power4W
Duration Time3 Hours
Recharge Period16 Hours
Battery Size & TypeLiFePO4 3.2V 3.0Ah
LED Power
2 W (emergency)
1 W (maintained)
CCT6500k
CRI70
Luminous Flux
200 lm (emergency)
60 lm (maintained)
View Distance
24m
Protection ClassClass
Operating Temperature0-40
Beam Angle
N/A




Features


-Exit blade with twin spitfire
-Recessed mounting, IP20

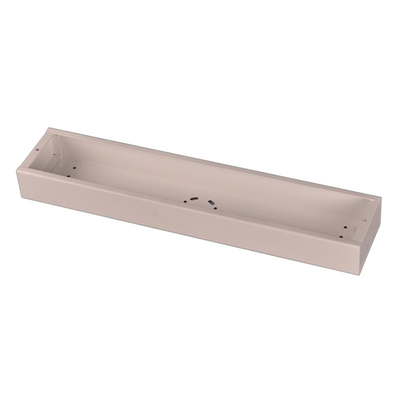

-Surface mounting box is optional
-Built-in LiFePO4 battery, replaceable
-Maintained operation
-Intelligent charge and discharge
-3 hours emergency duration
-Classification: C0/D32,C90/D12.5
-Self test is customizable
-Cut out: 400 x 70mm
-With 1.2meter flex and plug




Materials

-Panel: Metal
-Legend: PC
-Driver housing: PC, 850℃ glow wire test


Standard Compliance


-AS2293.3
-AS 60598.2.22
-AS/NZS 60598.1
-AS CISPR 15
-IEC62133
-AS61347-2-7


What is the purpose of emergency lighting?

The purpose of emergency lighting is to provide a level of illumination in exit pathways that will enable the occupants of the building to exit safely in the event of a main power failure.
Emergency lights are essential in buildings, offices, and public spaces as they provide illumination during power outages and emergencies.
What is the difference between maintenance and non-maintenance emergency lights?

Emergency lights (e.g. LED tubes with spare batteries) will provide normal lighting levels when mains power is available; When the main power fails, the emergency lights will rely on battery power at lower lighting levels. Usually used in parking lots and fireplaces.
Non-maintenance accessories (e.g. spitfire emergency lights) do not light unless the main power supply fails. Usually used in business offices.


Dimensions
IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS 0


Photometric Datasheet
IP20 Lithium Ion Battery Emergency Light Recessed Blade With Spitfire Lamp White 4W EGS4RS 1
