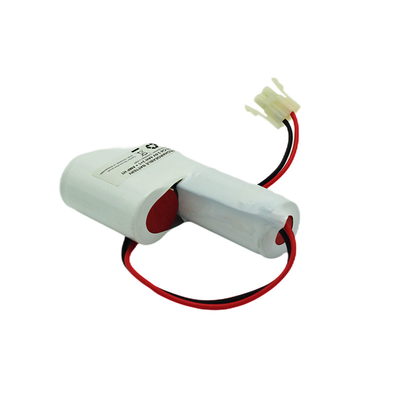

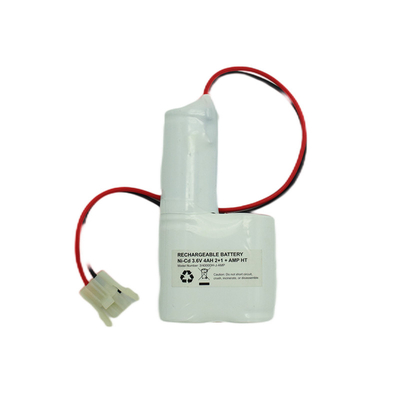

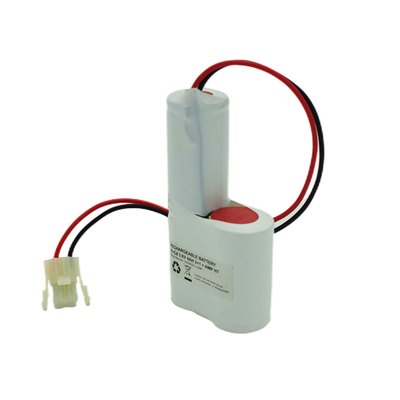

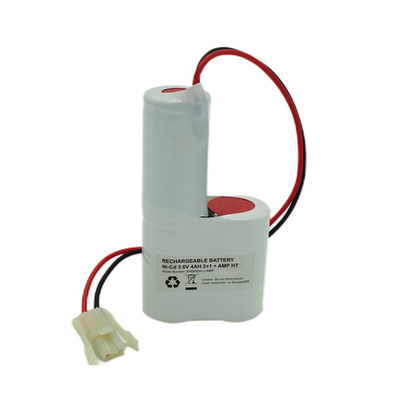

Stick Type 3.6 Volt D4000mah Batteries Ni Cd Exit Light Batteries
Product parameters:
| Pos. |
Product Paramaters |
Data |
| 1 |
Standard Charge Mode |
0.1C for 16 hours |
| 2 |
Cycle Life |
≥500 times |
| 3 |
Operating Temperature |
(-20℃) - (+70℃) |
| 4 |
Storage Temperature |
(-30℃) - (+60℃) |
| 5 |
Cell Dimension |
33 +0 -1.0(D), 60.0+0 -1.5(H) |
| 6 |
Cell Weight |
≈110g |
| 7 |
Expected Life |
5 years |
| 8 |
Packaging |
Standard export package or customized package |
Composition/Information on Ingredients:
| Chemical Name |
Concentration or concentration ranges (%) |
CAS Number |
| Nickel |
25-27 |
14332-32-2 |
| Cadmium |
26.7-28.7 |
7440-43-9 |
| lron |
22.5-24.5 |
7439-89-6 |
| Sodium |
3-5 |
7440-23-5 |
| Lithium |
1.3-1.5 |
743993-2 |
| Water |
20-22 |
7732-18-5 |
| Cobalt |
1.5-2 |
7440-48-4 |
List Of Ni-CD High Temperature Cells
| Type |
Model |
Diemeter
(mm) |
Height
(mm) |
Capacity
(mAh) |
Voltage
(V) |
Operating Temperature
(°C) |
| D |
GS-D400T |
33.0 +0 -1.0 |
60.0+0 -1.5 |
4000 |
1.2 |
-20 to 70 |
| GS-D400 |
33.0 +0 -1.0 |
60.0+0 -1.5 |
4000 |
1.2 |
-20 to 55 |
| GS-D450T |
33.0 +0 -1.0 |
60.0+0 -1.5 |
4500 |
1.2 |
-20 to 70 |
| GS-D450 |
33.0 +0 -1.0 |
60.0+0 -1.5 |
4500 |
1.2 |
-20 to 55 |
| GS-D500T |
33.0 +0 -1.0 |
60.0+0 -1.5 |
5000 |
1.2 |
-20 to 70 |
| GS-D500 |
33.0 +0 -1.0 |
60.0+0 -1.5 |
5000 |
1.2 |
-20 to 55 |
| GS-1/2D220T |
33.0 +0 -1.0 |
36.0 +0 -1.5 |
2200 |
1.2 |
-20 to 70 |
| GS-1/2D220 |
33.0 +0 -1.0 |
36.0 +0 -1.5 |
2200 |
1.2 |
-20 to 55 |
| GS-1/2D250 |
33.0 +0 -1.0 |
36.0 +0 -1.5 |
2500 |
1.2 |
-20 to 55 |
Advantages of Ni-Cad Batteries
Operating temperature range of -4 - 158°F
No sulfation associated with nickel cadmium (Ni-Cd) batteries
No shedding/loss of plate material
The best battery available for abusive or harsh environments
Low internal resistance
High rate charge and discharge rates are possible
Up to 10C discharge rates for short periods typical
Flat discharge characteristic (but falls off rapidly at the end of the cycle)
Tolerates deep discharges - can be deep cycled
We Are China Ni-Cd Battery Manufacturer and Suppliers and exit sign battery manufacturers and LiFePO4 Battery Packs, If You Need, Welcome To Contact Us To Know More.
Ni-Cd Battery Application:
1. Lighting: emergency lighting, emergency power supply, solar lights, searchlingts, flashlights
2. Power tools: electric drills, planers, saws, power granted
3. Electronic toys: remote control car, remote control boats, aircraft, model aircraft
4. Communication equipment: cordless phones, walkie-talkie
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
