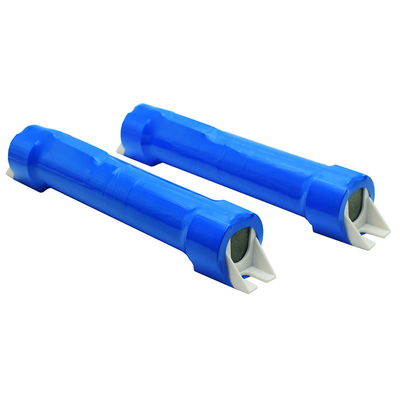

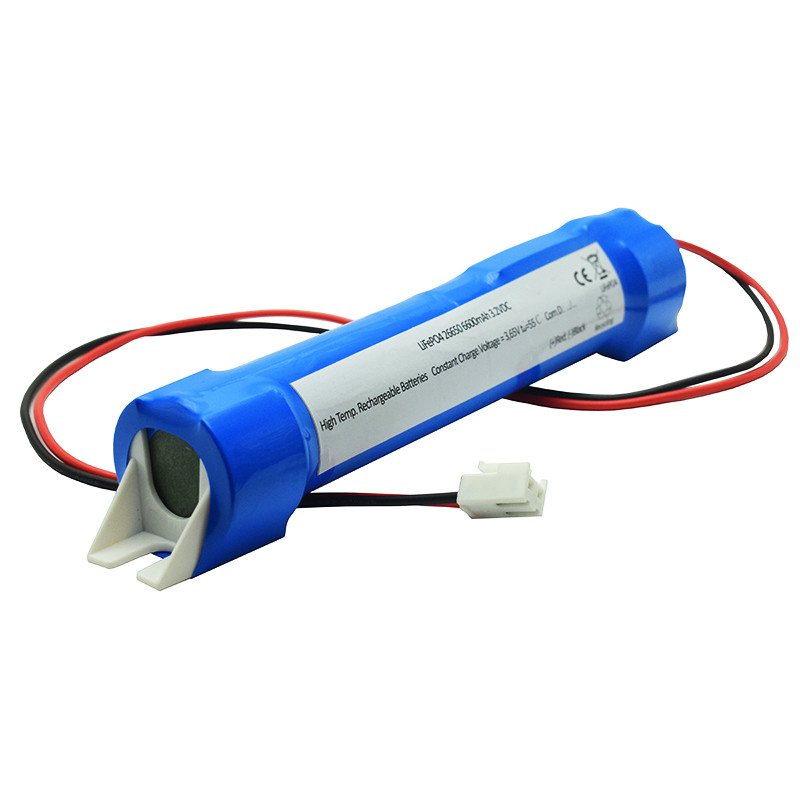

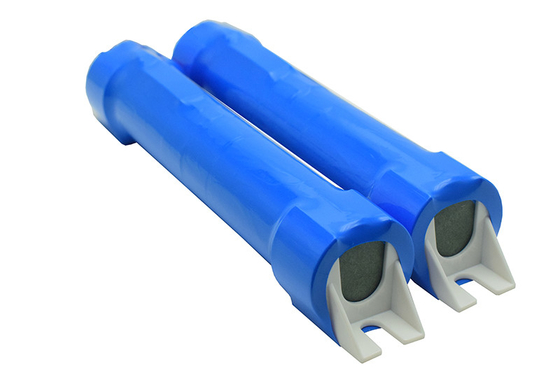

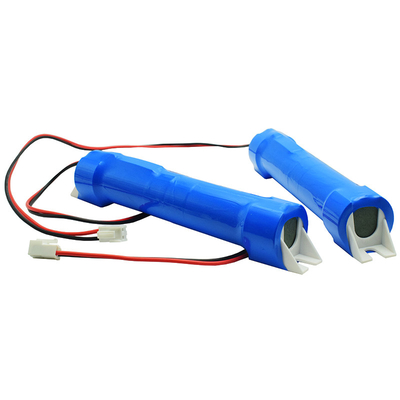

Lithium Fire Exit Light Batteries Lifepo4 Cells 26650 3.2V 6600mAh End Cups
LiFePO4 Rechargeable Battery 3.2V 6600mAh
| Pos. |
Product Parameters |
Data |
| 1 |
Standard Charge Mode |
CC/CV |
| 2 |
Cycle Life |
≥2000 times |
| 3 |
Operating Temperature |
Charge:(0℃)-(45℃)
Discharge(-20℃) - (+60℃)
Storage Temperature: (-20℃) - (+50℃)
|
| 4 |
Cell Dimension |
26.5(W), 65.5(H)mm |
| 5 |
Cell Weight |
≈250g |
| 6 |
Expected Life |
10 years |
| 7 |
Packaging |
Standard export package or customized package |
List Of LiFeO4 High Temperature Cells
| Type |
Diemeter
(mm) |
Height
(mm) |
Voltage
(V) |
Capacity
(mAh) |
Operating Temperature
(°C) |
| IFR14500 |
14.5 |
50.5 |
3.2 |
500 |
-20 to 60 |
| IFR14500 |
14.5 |
50.5 |
3.2 |
550 |
-20 to 60 |
| IFR14500 |
14.5 |
50.5 |
3.2 |
600 |
-20 to 60 |
| IFR18500 |
18.5 |
50.5 |
3.2 |
1000 |
-20 to 60 |
| IFR18650 |
18.5 |
65.5 |
3.2 |
1400 |
-20 to 60 |
| IFR18650 |
18.5 |
65.5 |
3.2 |
1500 |
-20 to 60 |
| IFR22650 |
22.5 |
65.5 |
3.2 |
2000 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3000 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3300 |
-20 to 60 |
| IFR26650 |
26.5 |
65.5 |
3.2 |
3400 |
-20 to 60 |
Feature Of Lifepo4 Battery:
1.High energy density: LiFePO4 batteries have a high energy density, allowing them to provide higher energy output.
2.Long lifespan: Compared to other lithium-ion batteries, LiFePO4 batteries have a longer lifespan due to their high cycle life.
3.High discharge rate: LiFePO4 batteries can provide high power output in a short period, making them suitable for applications that require high energy density and high power output.
4.Low self-discharge rate: Compared to other batteries, LiFePO4 batteries have a low self-discharge rate, allowing them to maintain their charge for a longer period.
5.High safety: LiFePO4 batteries are relatively safe compared to other lithium-ion batteries, as they are less likely to overheat, explode, etc.
6.Environmentally friendly: LiFePO4 batteries are environmentally friendly as they do not contain toxic heavy metals and have a small impact on the environment.
7.Good high-temperature performance: LiFePO4 batteries perform well in high-temperature environments and are more tolerant of high temperatures than other batteries.
8.Low internal resistance: LiFePO4 batteries have low internal resistance, allowing them to provide high current output in a short period, suitable for applications that require high power output.
How long do LiFePO4 batteries last?
Lithium has a long lifespan Super B lithium iron phosphate batteries live up to 5000 cycles at 80 percent depth of discharge, without decreasing in performance. The average lifetime of lead-acid batteries is just two years
Performance Curves of LiFePO4 Cell:
1. LiFePO4 Cell Charge Curve (Charge at 0.1C)
2. LiFePO4 Cell Discharge Curve (Discharge at 0.2C )
3. LiFePO4 Cell Charge Efficiency At Different Temperature
4. LiFePO4 Cell Cycle Life Curve
5. LiFePO4 Cell Capacity Change At Smart Floating Charge At 55 degree
Why Godson?
-- Professional And Stay Focused
More than twenty years’ experience in battery industry; Keep focusing on emergency lighting battery, e-bike battery and power tool battery.
-- Great Reliability
Expected life of our Ni-Cd battery pack is more than 5 years; Expected life of our LiFePO4 battery pack is more than 10 years; Our batteries comply with standards of ICEL 1010, IEC 60598, IEC 61951, IEC 61960, IEC 62133 and UN38.3.
-- Super High Cost-Effective
Price of our products is much more competitive comparing with our competitors, but with the same or even better performance.
-- Strict Control In Production Process
ISO9001/2008 standards are strictly implemented in every process of our production.
-- Quick Response and Fast Delivery
Every inquiry would be replied within 24 hours, each order would be delivered within 30 days.
-- Flexibility in orders
Small orders acceptable as well.
