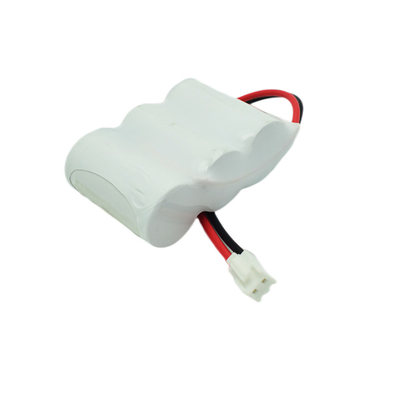

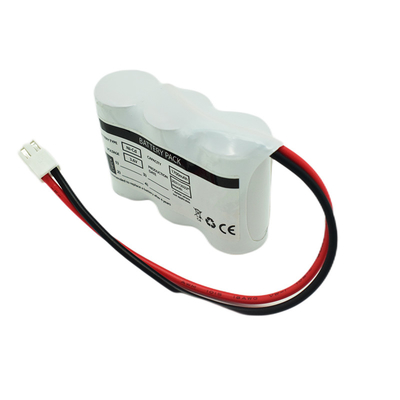

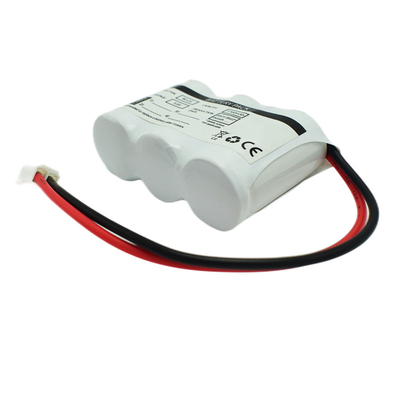

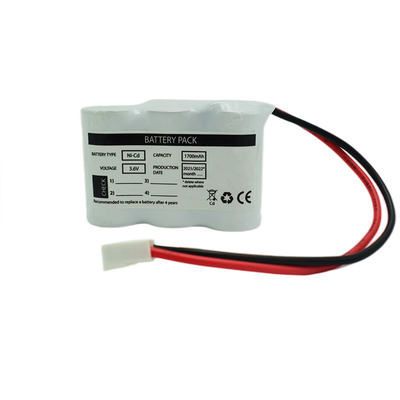

SC1700mah Emergency Light Ni Cd Battery Pack 3.6 Volt Competitive Price
Product parameters:
| Description |
Specification |
Conditions |
| Nominal Voltage |
1.2 V |
|
| Nominal Capacity |
1700mAh |
Standard Charge/Discharge,up to 3 cycles are allowed.
|
| Minimum Capacity |
1700mAh |
| Standard Charge |
170mA(0.1C) × 16 hrs |
Ta=0～70℃ (see Note 1) |
|
Rapid Charge
|
850mA(0.5C) ×156 mins
approx.
|
(With -△V or dT/dt or TCO control) Timer CutOff =120%
input capacity ( for ref. only)
-△V= 5-10mV/cell dT/dt = 1～2℃/3min Ta=10～55℃
|
| Trickle Charge |
90-180mA(0.05C-0.1C) |
Ta=0～70℃ |
| Discharge Cut-off Voltage |
1.0V |
|
| Maximum Discharging Current |
1700mA(1C) |
|
| Discharge Temperature |
-20℃～70℃ |
|
| Storage Temperature |
-20℃～35℃ |
|
| Typical Weight(approximate) |
46.5g |
|
Application:
| Pos. |
Application fields |
Application of the product |
| 1 |
Lighting |
emergency lighting, emergency power supply, solar lights |
| 2 |
Power tools |
electric drills, planers, saws, power granted |
| 3 |
Electronic toys |
remote control car, remote control boats, aircraft, model aircraft |
| 4 |
Communication equipment |
cordless phones, walkie-talkie |
Product performance:
1. Ni-Cd battery has high charge and discharge efficiency and good safety performance at high temperature and has long service life under condition of long term floating charge, which makes it very suitable for emergency lighting application.
2. Reliable safety valve. The safety valve provides maintenance free function. Nickel cadmium battery can be used freely in the process of charge discharge or storage.
3. Long storage period. The Ni Cd battery has a long storage life and few restrictions, so it can be charged normally after long-term storage. When storing your batteries, keep in mind the temperature can't be extreme. The recommendation says batteries need to be stored around 15°C. Keep your batteries away from the sun and choose any cool and dry room for the storage.
4. High rate charging performance. The nickel cadmium battery can be quickly charged according to the application needs, and the full charge time is only 1.2 hours.
5. High life. The Ni Cd battery can provide more than 500 charge and discharge cycles, and its service life is almost equal to the service life of the equipment using the battery.
Something to know about Ni-Cd battery:
What is a Ni-Cd battery?
A nickel-cadmium battery (Ni-Cd or Ni-Cad) is a rechargeable battery used in portable computers, rigs, video cameras, and other small battery-powered devices that require uniform discharge. Ni-Cds use electrodes made from nickel oxide hydroxide, cadmium metal, and potassium hydroxide alkaline electrolyte.
Ni-Cd Battery Pack
Two or more Ni-Cd battery cells combined to form a battery pack. Because they are typically similar in size to primary cells (non-rechargeable batteries), Ni-Cds may have lower terminal voltages and smaller ampere-hour capacities. However, unlike primary cells, Ni-Cds provide a nearly constant terminal voltage during discharge, which can result in an almost undetectably low charge. During discharge, Ni-Cds convert chemical energy into electrical energy. During charging, Ni-Cds convert electrical energy back into chemical energy.
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
FAQ
Q1:Are these new cells?
A: Yes 100% ,factory direct.
Q2: Are you a trading company or manufacturer?A: We are globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4,, Lion-polymer and other relevant lithium batteries.
Q3: Can you do OEM?
A: Yes, OEM is acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.
Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.
