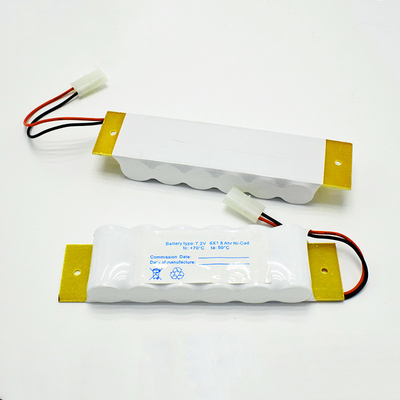

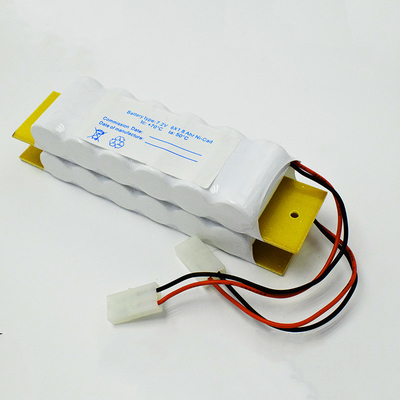

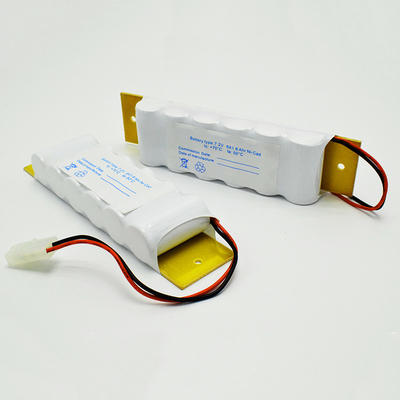

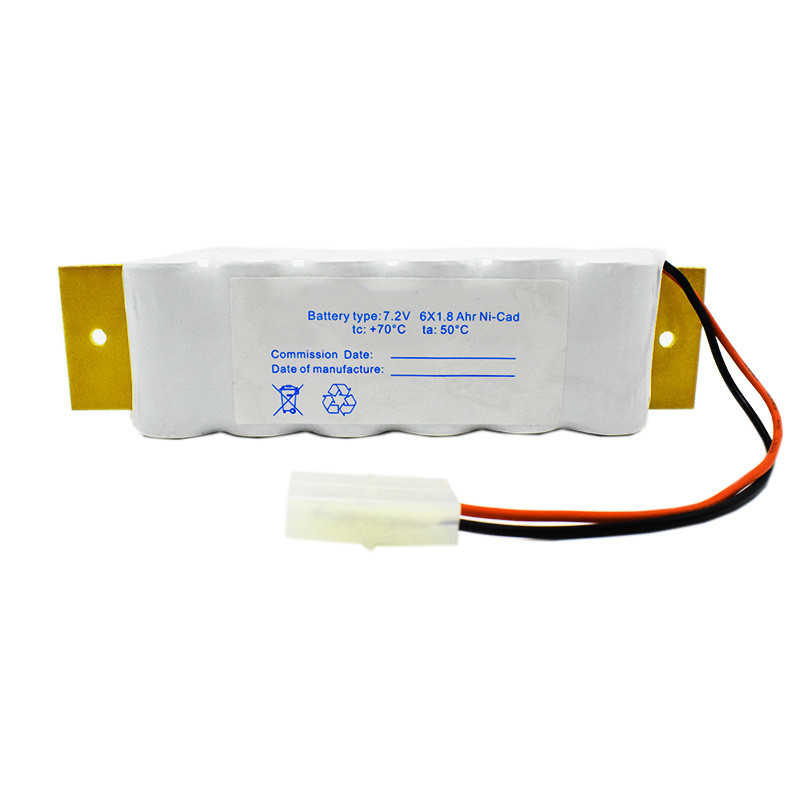

SC1800mAh 7.2 V Emergency Exit Sign NiCd Battery With Backplate
Cell Product parameters:
| Description |
Specification |
Conditions |
| Nominal Voltage |
1.2 V |
|
| Nominal Capacity |
1800mAh |
Standard Charge/Discharge,up to 3 cycles are allowed.
|
| Minimum Capacity |
1800mAh |
| Standard Charge |
180mA(0.1C) × 16 hrs |
Ta=0～70℃ (see Note 1) |
|
Rapid Charge
|
90mA(0.5C) ×156 mins
approx.
|
(With -△V or dT/dt or TCO control) Timer CutOff =120%
input capacity ( for ref. only)
-△V= 5-10mV/cell dT/dt = 1～2℃/3min
Temp. CutOff = 50℃ (122°F) Ta=10～35℃
|
| Trickle Charge |
90-180mA(0.05C-0.1C) |
Ta=0～55℃ |
| Discharge Cut-off Voltage |
1.0V |
|
| Maximum Discharging Current |
1800mA(1C) |
|
| Operation Temperature |
-20℃～55℃ |
|
| Storage Temperature |
-20℃～35℃ |
|
List Of Ni-CD High Temperature Cells
| Type |
Model |
Diemeter
(mm) |
Height
(mm) |
Capacity
(mAh) |
Voltage
(V) |
Operating Temperature
(°C) |
| SC |
GS-4/5SC120T |
23.0 +0 -1.0 |
33.5±0.5 |
1200 |
1.2 |
-20 to 70 |
| GS-SC120T |
23.0 +0 -1.0 |
42.5±0.5 |
1200 |
1.2 |
-20 to 70 |
| GS-SC120 |
23.0 +0 -1.0 |
42.5±0.5 |
1200 |
1.2 |
-20 to 55 |
| GS-SC130T |
23.0 +0 -1.0 |
42.5±0.5 |
1300 |
1.2 |
-20 to 70 |
| GS-SC130 |
23.0 +0 -1.0 |
42.5±0.5 |
1300 |
1.2 |
-20 to 55 |
| GS-SC140T |
23.0 +0 -1.0 |
42.5±0.5 |
1400 |
1.2 |
-20 to 70 |
| GS-SC140 |
23.0 +0 -1.0 |
42.5±0.5 |
1400 |
1.2 |
-20 to 55 |
| GS-SC150T |
23.0 +0 -1.0 |
42.5±0.5 |
1500 |
1.2 |
-20 to 70 |
| GS-SC150 |
23.0 +0 -1.0 |
42.5±0.5 |
1500 |
1.2 |
-20 to 55 |
| GS-SC160T |
23.0 +0 -1.0 |
42.5±0.5 |
1600 |
1.2 |
-20 to 70 |
| GS-SC160 |
23.0 +0 -1.0 |
42.5±0.5 |
1600 |
1.2 |
-20 to 55 |
| GS-SC170T |
23.0 +0 -1.0 |
42.5±0.6 |
1700 |
1.2 |
-20 to 70 |
| GS-SC170 |
23.0 +0 -1.0 |
42.5±0.6 |
1700 |
1.2 |
-20 to 55 |
| GS-SC180T |
23.0 +0 -1.0 |
42.5±0.5 |
1800 |
1.2 |
-20 to 70 |
| GS-SC180 |
23.0 +0 -1.0 |
42.5±0.5 |
1800 |
1.2 |
-20 to 55 |
| GS-SC190T |
23.0 +0 -1.0 |
42.5±0.5 |
1900 |
1.2 |
-20 to 70 |
| GS-SC190 |
23.0 +0 -1.0 |
42.5±0.5 |
1900 |
1.2 |
-20 to 55 |
Application:
| Pos. |
Application fields |
Application of the product |
| 1 |
Lighting |
emergency lighting, emergency power supply, solar lights, searchlingts, flashlights |
| 2 |
Power tools |
electric drills, planers, saws, power granted |
| 3 |
Electronic toys |
remote control car, remote control boats, aircraft, model aircraft |
| 4 |
Communication equipment |
cordless phones, walkie-talkie |
| 5 |
Other uses |
electric shavers, massagers, electric tooth brush
|
Are Ni Cd batteries rechargeable?
The nickel–cadmium battery (Ni-Cd battery or NiCad battery) is a type of rechargeable battery using nickel oxide hydroxide and metallic cadmium as electrodes.A Ni-Cd battery has a terminal voltage during discharge of around 1.2 volts which decreases little until nearly the end of discharge.
Ni-Cd Battery Properties
1.Withstand long periods of deep discharge
2.More charge/discharge cycles than other rechargeable batteries to extend battery life
3.Higher energy density, lighter and more compact than lead-acid batteries Ni-Cd is preferred when size and weight are critical factors, such as in aircraft
4.Lower self-discharge rate than nickel-metal hydride(20% per month vs. 30% per month)
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
Why Godson?
-- Professional And Stay Focused
More than twenty years’ experience in battery industry; Keep focusing on emergency lighting battery, e-bike battery and power tool battery.
-- Great Reliability
Expected life of our Ni-Cd battery pack is more than 5 years; Expected life of our LiFePO4 battery pack is more than 10 years; Our batteries comply with standards of ICEL 1010, IEC 60598, IEC 61951, IEC 61960, IEC 62133 and UN38.3.
-- Super High Cost-Effective
Price of our products is much more competitive comparing with our competitors, but with the same or even better performance.
-- Strict Control In Production Process
ISO9001/2008 standards are strictly implemented in every process of our production.
-- Quick Response and Fast Delivery
Every inquiry would be replied within 24 hours, each order would be delivered within 30 days.
-- Flexibility in orders
Small orders acceptable as well.
