6.4V 1500mAh 18650 Emergency Lighting LFP Battery Solution Provider

6.4V 1500mAh 18650 Emergency Lighting LFP battery Solution Provider

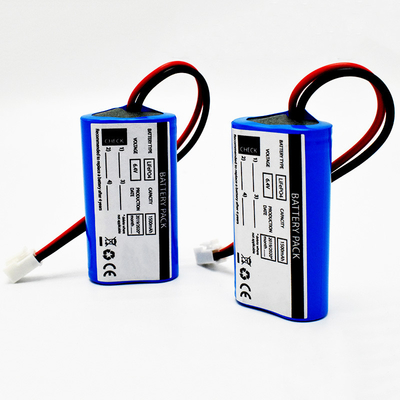

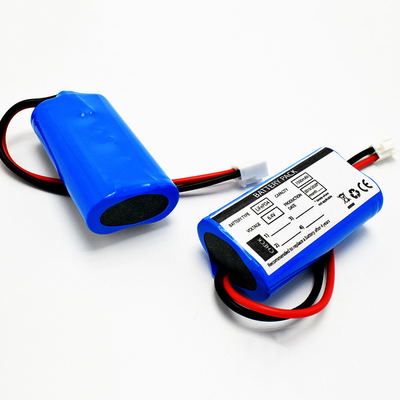

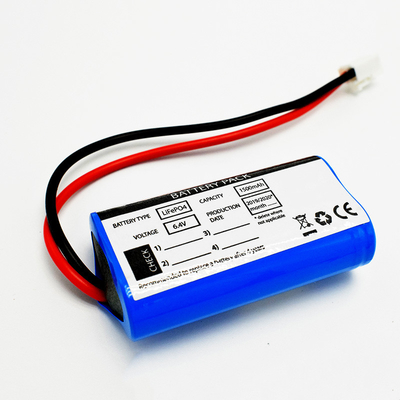

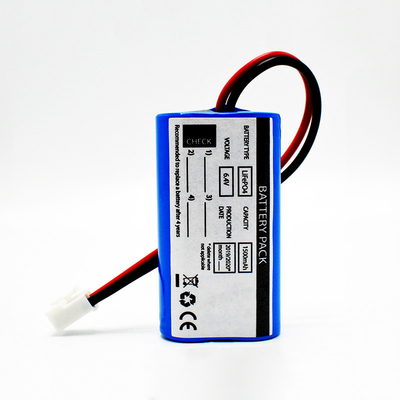

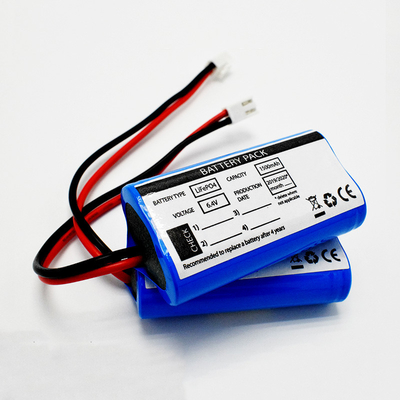

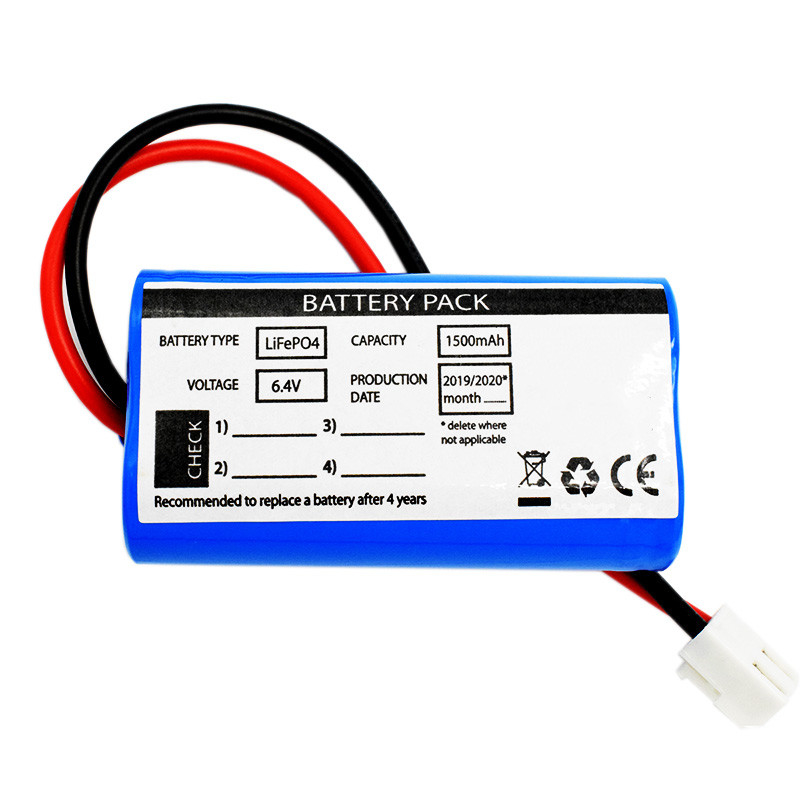

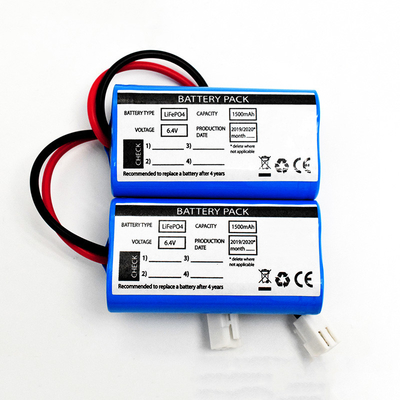

LiFePO4 Rechargeable Battery 6.4V 1500mAh


List Of LiFeO4 High Temperature Cells


Feature Of Liepo4 Battery

Long cycle life

No memory effect

High energy density

Pollution-free

High discharge rate

Light weight

High working voltage for single battery cells

Capacity, resistance, Voltage, platform time consistency is good

With short-circuit production function, safe and reliable

Good consistency, low self discharge

LiFePO4 Battery Performance and Test Conditions

1. Standard test conditions

Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.

2. Standard Charge/Discharge

Standard Charge: 0.2C

Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.

Standard Discharge: 0.2C

Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C

Performance Curves of LiFePO4 Cell:


1. LiFePO4 Cell Charge Curve (Charge at 0.1C)


2. LiFePO4 Cell Discharge Curve (Discharge at 0.2C )

3. LiFePO4 Cell Charge Efficiency At Different Temperature

4. LiFePO4 Cell Cycle Life Curve

5. LiFePO4 Cell Capacity Change At Smart Floating Charge At 55 degree

● Extreme temperature performance.

High temperatures. LFP is unharmed by ambient temperatures up to 60ºC, whereas NiCd and NiMH can only tolerate 55ºC and 50ºC respectively.

● Environment.
Cadmium is banned under the RoHS Directive because it is a dangerous pollutant.
1. Cadmium is highly toxic.
Cadmium is highly toxic to almost all animals and many plants. It is also very persistent in the environment, being not easily combined with other elements that would render it harmless. NiCd batteries therefore have to be recycled with great care. LFP batteries must also be recycled, but the materials used are inherently less harmful than those used in NiCd and NiMH batteries.
2. Cadmium has limited future use.
Now that superior alternatives to cadmium are available for use in batteries it is to be expected that the RoHS directive will be amended to eliminate the exemption that has been allowed till now.
3. Lithium has a long future ahead.
Lithium iron phosphate in particular is favored for its safety, economy, and efficiency and is being increasingly used in many applications, such as vehicles, in addition to emergency lighting.
