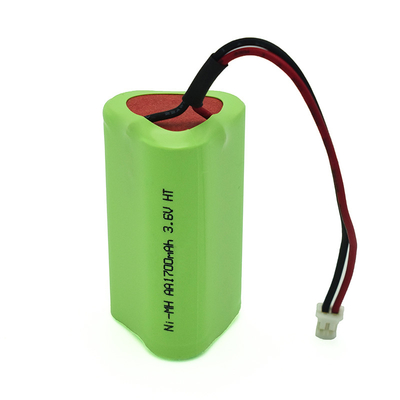

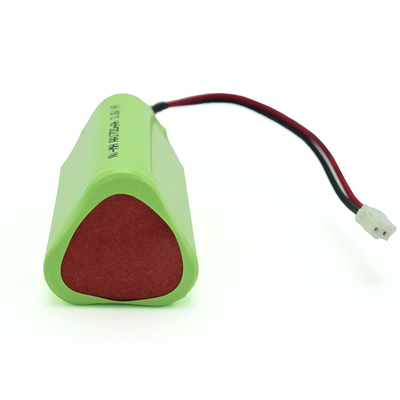

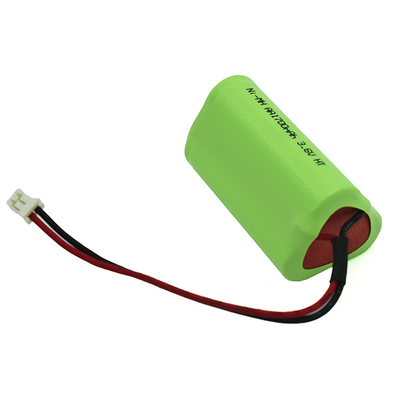

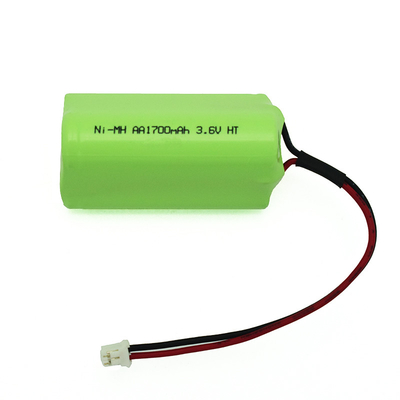

High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools

High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools
High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools

Large Image :  High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Godson or OEM
Model Number: Ni-MH Battery Cell AA 1700mAh 1.2V
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Payment Terms: T/T
Contact Now

High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools

Description
Type: NiMH Capacity: 1700mAh
Voltage: 3.6V Size: AA
Configuration: Single Cell Model Number: GS-AA170HT
Highlight:

AA1700mAh Ni Mh Battery

,

Power Tools Ni Mh Battery

,

3.6 V Ni Mh Battery


Emergency Lighting Ni-MH Battery Pack AA 1700mAh 3.6V



Product parameters:


Description Specification Conditions
Nominal Voltage 1.2 V
Nominal Capacity 1600mAh



Standard Charge/Discharge,up to 3 cycles are allowed.
Minimum Capacity 1600mAh
Standard Charge 160mA(0.1C) × 16 hrs Ta=0～70℃ (see Note 1)







Rapid Charge





800mA(0.5C) ×144 mins

approx.



(With -△V or dT/dt or TCO control) Timer CutOff =120%

input capacity ( for ref. only)

-△V= 5-10mV/cell dT/dt = 1～2℃/3min Ta=10～55℃
Trickle Charge 75-170mA(0.05C-0.1C) Ta=0～70℃
Discharge Cut-off Voltage 1.0V
Maximum Discharging Current 1700mA(1C)
Discharge Temperature -20℃～70℃
Storage Temperature -20℃～35℃
Typical Weight(approximate) 27g



Application:


Pos. Application fields Application of the product
1 Lighting emergency lighting, emergency power supply, solar lights, searchlingts, flashlights
2 Power tools electric drills, planers, saws, power granted
3 Electronic toys remote control car, remote control boats, aircraft, model aircraft
4 Communication equipment cordless phones, walkie-talkie
5 Other uses electric shavers, massagers, electric tooth brush




List Of Ni-MH High Temperature Cells:





Type Model Diemeter
(mm)		 Height
(mm)		 Capacity
(mAh)		 Voltage(V) Operating Temperature
(°C)
AA GS-AA60HT 14.5 +0 -0.7 50.0±0.5 600 1.2 -20 to 70
GS-AA60H 14.5 +0 -0.7 50.0±0.5 600 1.2 -20 to 55
GS-AA70HT 14.5 +0 -0.7 50.0±0.5 700 1.2 -20 to 70
GS-AA70H 14.5 +0 -0.7 50.0±0.5 700 1.2 -20 to 55
GS-AA80HT 14.5 +0 -0.7 50.0±0.5 800 1.2 -20 to 70
GS-AA80H 14.5 +0 -0.7 50.0±0.5 800 1.2 -20 to 55
GS-AA85HT 14.5 +0 -0.7 50.0±0.5 850 1.2 -20 to 70
GS-AA85H 14.5 +0 -0.7 50.0±0.5 850 1.2 -20 to 55
GS-AA90HT 14.5 +0 -0.7 50.0±0.5 900 1.2 -20 to 70
GS-AA90H 14.5 +0 -0.7 50.0±0.5 900 1.2 -20 to 55
GS-AA100HT 14.5 +0 -0.7 50.0±0.5 1000 1.2 -20 to 70
GS-AA100H 14.5 +0 -0.7 50.0±0.5 1000 1.2 -20 to 55
GS-AA110HT 14.5 +0 -0.7 50.0±0.5 1100 1.2 -20 to 70
GS-AA110H 14.5 +0 -0.7 50.0±0.5 1100 1.2 -20 to 55
GS-AA120HT 14.5 +0 -0.7 50.0±0.5 1200 1.2 -20 to 70
GS-AA120H 14.5 +0 -0.7 50.0±0.5 1200 1.2 -20 to 55
GS-AA130HT 14.5 +0 -0.7 50.0±0.5 1300 1.2 -20 to 70
GS-AA130H 14.5 +0 -0.7 50.0±0.5 1300 1.2 -20 to 55
GS-AA140HT 14.5 +0 -0.7 50.0±0.5 1400 1.2 -20 to 70
GS-AA140H 14.5 +0 -0.7 50.0±0.5 1400 1.2 -20 to 55
GS-AA150HT 14.5 +0 -0.7 50.0±0.5 1500 1.2 -20 to 70
GS-AA150H 14.5 +0 -0.7 50.0±0.5 1500 1.2 -20 to 55
GS-AA160HT 14.5 +0 -0.7 50.0±0.5 1600 1.2 -20 to 70
GS-AA160H 14.5 +0 -0.7 50.0±0.5 1600 1.2 -20 to 55
GS-AA170H 14.5 +0 -0.7 50.0±0.5 1700 1.2 -20 to 55
GS-AA180H 14.5 +0 -0.7 50.0±0.5 1800 1.2 -20 to 55
GS-AA190H 14.5 +0 -0.7 50.0±0.5 1900 1.2 -20 to 55
GS-AA200H 14.5 +0 -0.7 50.0±0.5 2000 1.2 -20 to 55
GS-AA210H 14.5 +0 -0.7 50.0±0.5 2100 1.2 -20 to 55
GS-AA220H 14.5 +0 -0.7 50.0±0.5 2200 1.2 -20 to 55



Ni-MH battery advantages

1. No memory effect (compared to Ni-Cd).
Ni-MH can be partially charged (for example, on a cloudy day) and fully charged to maximum capacity on the next sunny day. There is a small amount of discharge (trickle discharge) during storage, so it is best to put Ni-MH batteries in your garden solar lights before dawn on a sunny day. They will then be ready for you to enjoy the nighttime fun.

2. Long shelf life.
They can remain unused for between 3 and 5 years. However, we recommend that you use new Ni-MH rechargeable batteries as soon as possible to ensure that these solar lights always shine.

3. High stability: the company adopts the best materials, advanced production technology and technology to make the battery performance stable and reliable.

4. Long service life (under normal conditions, the battery cycles more than 500 times.)





Performance Curves for Ni-MH Cell:



1. Ni-MH Cell Charge Curve At 0.1C For 16h At 55 Degree



High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools 0



2. Ni-MH Cell Discharge Curve At 0.25C At 55 Degree



High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools 1



3. Ni-MH Cell Charge Efficiency At Different Temperature



High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools 2



4. Ni-MH Cell Cycle Life Curve


High Capacity 3.6 V AA1700mAh Ni Mh Battery Cell For Emergency Lighting And Power Tools 3
