Ni MH Battery Cell AA 1500mAh 2.4V Emergency Lighting Energy

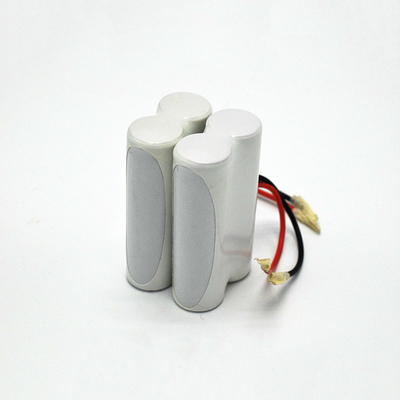

Large Image : Ni MH Battery Cell AA 1500mAh 2.4V Emergency Lighting Energy

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Godson or OEM
Model Number:	Ni-MH Battery Cell AA 1500mAh 2.4V

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiable
Payment Terms:	T/T

Contact Now

Ni MH Battery Cell AA 1500mAh 2.4V Emergency Lighting Energy

Description

Type:	NiMH	Capacity:	1500mAh
Voltage:	2.4V	Size:	AA
Configuration:	Side By Side	Model Number:	GS-AA150HT
Highlight:	1500mAh NiMH Battery Cell , 2.4V NiMH Battery Cell , 2.4V 1500mAh Battery

Emergency Lighting Ni-MH Battery Cell AA 1500mAh 2.4V For Sale

Product parameters:

Description	Specification	Conditions
Nominal Voltage	1.2 V
Nominal Capacity	1500mAh	Standard Charge/Discharge,up to 3 cycles are allowed.
Minimum Capacity	1500mAh	Standard Charge/Discharge,up to 3 cycles are allowed.
Standard Charge	150mA(0.1C) × 16 hrs	Ta=0～70℃ (see Note 1)
Rapid Charge	750mA(0.5C) ×144 mins approx.	(With -△V or dT/dt or TCO control) Timer CutOff =120% input capacity ( for ref. only) -△V= 5-10mV/cell dT/dt = 1～2℃/3min Ta=10～55℃
Trickle Charge	75-150mA(0.05C-0.1C)	Ta=0～70℃
Discharge Cut-off Voltage	1.0V
Maximum Discharging Current	1500mA(1C)
Discharge Temperature	-20℃～70℃
Storage Temperature	-20℃～35℃
Typical Weight(approximate)	27g

Test methods and performance:

Test	Specification	Conditions	Remarks
Open Circuit Voltage(OCV)	≥1.25V	After 24 hours standard charge
Capacity	≥1500mAh	Standard Charge/Discharge	Up to 3 cycles are allowed
0.5C Discharge	≥110min	Standard Charge, 1hr rest before discharge	End voltage 1.0V
Permanent Charge Endurance Test	T1≥195min T2≥170min
Internal Impedance (Ri)	≤35mΩ	Following a standard charge period, Checked at 1000Hz with 1~4 hour
Overcharge	No leakage nor deformation	Standard discharge 150mA(0.1C) charge 48 hours
Charge Retention	≥900mAh	Standard Charge, Storage:28 days, Standard Discharge
Charge Efficiency	≥270min	Standard discharge Recharge at 0.1C for 10 hours,then Discharge at 0.2C to 1.0/cell.
Leakage	No leakage nor deformation	Fully charged at750mA(0.5C), Storage for 14 days
IEC Cycle Test	≥500 Cycle	IEC 61951-1:2003
Overdischarge	No explode nor fire	Discharge at 0.2C to 0V,then force to discharge at 1C for 1 hour.	Unit cell

Application:

Pos.	Application fields	Application of the product
1	Lighting	emergency lighting, emergency power supply, solar lights, searchlingts, flashlights
2	Power tools	electric drills, planers, saws, power granted
3	Electronic toys	remote control car, remote control boats, aircraft, model aircraft
4	Communication equipment	cordless phones, walkie-talkie
5	Other uses	electric shavers, massagers, electric tooth brush

List Of Ni-MH High Temperature Cells:

Type	Model	Diemeter (mm)	Height (mm)	Capacity (mAh)	Voltage(V)	Operating Temperature (°C)
AA	GS-AA60HT	14.5 +0 -0.7	50.0±0.5	600	1.2	-20 to 70
	GS-AA60H	14.5 +0 -0.7	50.0±0.5	600	1.2	-20 to 55
	GS-AA70HT	14.5 +0 -0.7	50.0±0.5	700	1.2	-20 to 70
	GS-AA70H	14.5 +0 -0.7	50.0±0.5	700	1.2	-20 to 55
	GS-AA80HT	14.5 +0 -0.7	50.0±0.5	800	1.2	-20 to 70
	GS-AA80H	14.5 +0 -0.7	50.0±0.5	800	1.2	-20 to 55
	GS-AA85HT	14.5 +0 -0.7	50.0±0.5	850	1.2	-20 to 70
	GS-AA85H	14.5 +0 -0.7	50.0±0.5	850	1.2	-20 to 55
	GS-AA90HT	14.5 +0 -0.7	50.0±0.5	900	1.2	-20 to 70
	GS-AA90H	14.5 +0 -0.7	50.0±0.5	900	1.2	-20 to 55
	GS-AA100HT	14.5 +0 -0.7	50.0±0.5	1000	1.2	-20 to 70
	GS-AA100H	14.5 +0 -0.7	50.0±0.5	1000	1.2	-20 to 55
	GS-AA110HT	14.5 +0 -0.7	50.0±0.5	1100	1.2	-20 to 70
	GS-AA110H	14.5 +0 -0.7	50.0±0.5	1100	1.2	-20 to 55
	GS-AA120HT	14.5 +0 -0.7	50.0±0.5	1200	1.2	-20 to 70
	GS-AA120H	14.5 +0 -0.7	50.0±0.5	1200	1.2	-20 to 55
	GS-AA130HT	14.5 +0 -0.7	50.0±0.5	1300	1.2	-20 to 70
	GS-AA130H	14.5 +0 -0.7	50.0±0.5	1300	1.2	-20 to 55
	GS-AA140HT	14.5 +0 -0.7	50.0±0.5	1400	1.2	-20 to 70
	GS-AA140H	14.5 +0 -0.7	50.0±0.5	1400	1.2	-20 to 55
	GS-AA150HT	14.5 +0 -0.7	50.0±0.5	1500	1.2	-20 to 70
	GS-AA150H	14.5 +0 -0.7	50.0±0.5	1500	1.2	-20 to 55
	GS-AA160HT	14.5 +0 -0.7	50.0±0.5	1600	1.2	-20 to 70
	GS-AA160H	14.5 +0 -0.7	50.0±0.5	1600	1.2	-20 to 55
	GS-AA170H	14.5 +0 -0.7	50.0±0.5	1700	1.2	-20 to 55
	GS-AA180H	14.5 +0 -0.7	50.0±0.5	1800	1.2	-20 to 55
	GS-AA190H	14.5 +0 -0.7	50.0±0.5	1900	1.2	-20 to 55
	GS-AA200H	14.5 +0 -0.7	50.0±0.5	2000	1.2	-20 to 55
	GS-AA210H	14.5 +0 -0.7	50.0±0.5	2100	1.2	-20 to 55
	GS-AA220H	14.5 +0 -0.7	50.0±0.5	2200	1.2	-20 to 55

Ni-MH battery advantages

1. No memory effect (compared to Ni-Cd).
Ni-MH can be partially charged (for example, on a cloudy day) and fully charged to maximum capacity on the next sunny day. There is a small amount of discharge (trickle discharge) during storage, so it is best to put Ni-MH batteries in your garden solar lights before dawn on a sunny day. They will then be ready for you to enjoy the nighttime fun.

2. Long shelf life.
They can remain unused for between 3 and 5 years. However, we recommend that you use new Ni-MH rechargeable batteries as soon as possible to ensure that these solar lights always shine.

3. High stability: the company adopts the best materials, advanced production technology and technology to make the battery performance stable and reliable.

4. Long service life (under normal conditions, the battery cycles more than 500 times.)

Performance Curves for Ni-MH Cell:

1. Ni-MH Cell Charge Curve At 0.1C For 16h At 55 Degree

Ni MH Battery Cell AA 1500mAh 2.4V Emergency Lighting Energy 0

2. Ni-MH Cell Discharge Curve At 0.25C At 55 Degree

Ni MH Battery Cell AA 1500mAh 2.4V Emergency Lighting Energy 1

3. Ni-MH Cell Charge Efficiency At Different Temperature

Ni MH Battery Cell AA 1500mAh 2.4V Emergency Lighting Energy 2

4. Ni-MH Cell Cycle Life Curve

Ni MH Battery Cell AA 1500mAh 2.4V Emergency Lighting Energy 3
