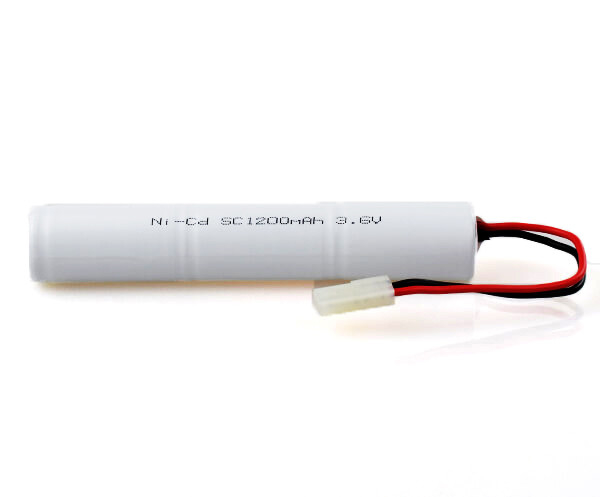

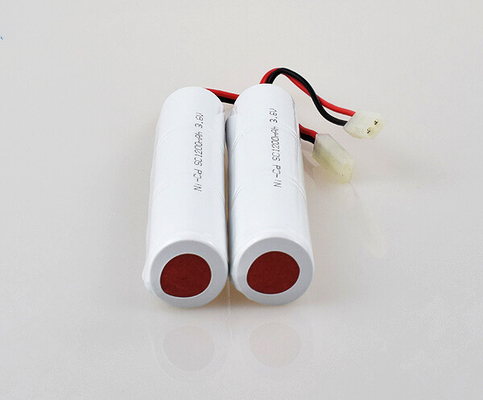

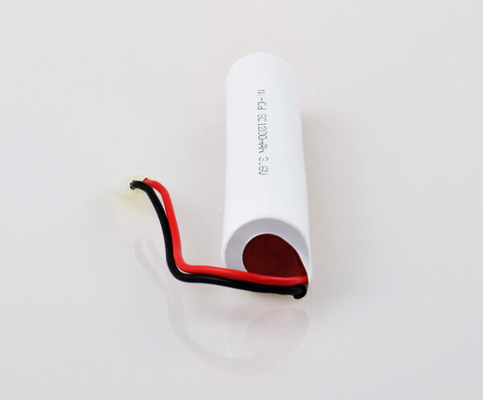

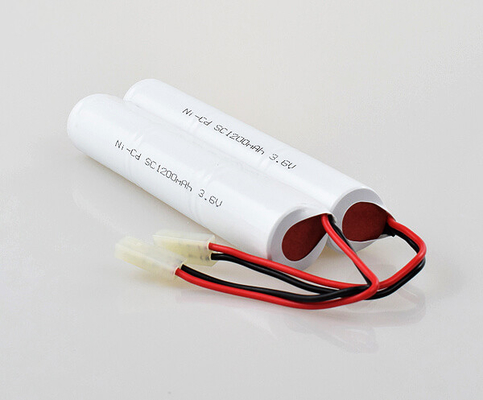

3.6V SC1200mAh NiCd Battery Stick Pack With Good Safety
Application:
| Pos. |
Application fields |
Application of the product |
| 1 |
Lighting |
emergency lighting, emergency power supply, solar lights, searchlingts, flashlights |
| 2 |
Power tools |
electric drills, planers, saws, power granted |
| 3 |
Electronic toys |
remote control car, remote control boats, aircraft, model aircraft |
| 4 |
Communication equipment |
cordless phones, walkie-talkie |
| 5 |
Other uses |
electric shavers, massagers, electric tooth brush |
Product parameters:
| Pos. |
Product Paramaters |
Data |
| 1 |
Standard Charge Mode |
0.1C for 16 hours |
| 2 |
Cycle Life |
≥500 times |
| 3 |
Operating Temperature |
(-20℃) - (+70℃) |
| 4 |
Storage Temperature |
(-30℃) - (+60℃) |
| 5 |
Cell Dimension |
23 +0 -1.0(D), 33.5±0.5(H) |
| 6 |
Cell Weight |
≈36g |
| 7 |
Expected Life |
5 years |
| 8 |
Packaging |
Standard export package or customized package |
List Of Ni-CD High Temperature Cells
| Type |
Model |
Diemeter
(mm) |
Height
(mm) |
Capacity
(mAh) |
Voltage
(V) |
Operating Temperature
(°C) |
| SC |
GS-4/5SC120T |
23.0 +0 -1.0 |
33.5±0.5 |
1200 |
1.2 |
-20 to 70 |
| GS-SC120T |
23.0 +0 -1.0 |
42.5±0.5 |
1200 |
1.2 |
-20 to 70 |
| GS-SC120 |
23.0 +0 -1.0 |
42.5±0.5 |
1200 |
1.2 |
-20 to 55 |
| GS-SC130T |
23.0 +0 -1.0 |
42.5±0.5 |
1300 |
1.2 |
-20 to 70 |
| GS-SC130 |
23.0 +0 -1.0 |
42.5±0.5 |
1300 |
1.2 |
-20 to 55 |
| GS-SC140T |
23.0 +0 -1.0 |
42.5±0.5 |
1400 |
1.2 |
-20 to 70 |
| GS-SC140 |
23.0 +0 -1.0 |
42.5±0.5 |
1400 |
1.2 |
-20 to 55 |
| GS-SC150T |
23.0 +0 -1.0 |
42.5±0.5 |
1500 |
1.2 |
-20 to 70 |
| GS-SC150 |
23.0 +0 -1.0 |
42.5±0.5 |
1500 |
1.2 |
-20 to 55 |
| GS-SC160T |
23.0 +0 -1.0 |
42.5±0.5 |
1600 |
1.2 |
-20 to 70 |
| GS-SC160 |
23.0 +0 -1.0 |
42.5±0.5 |
1600 |
1.2 |
-20 to 55 |
| GS-SC170T |
23.0 +0 -1.0 |
42.5±0.6 |
1700 |
1.2 |
-20 to 70 |
| GS-SC170 |
23.0 +0 -1.0 |
42.5±0.6 |
1700 |
1.2 |
-20 to 55 |
| GS-SC180T |
23.0 +0 -1.0 |
42.5±0.5 |
1800 |
1.2 |
-20 to 70 |
| GS-SC180 |
23.0 +0 -1.0 |
42.5±0.5 |
1800 |
1.2 |
-20 to 55 |
| GS-SC190T |
23.0 +0 -1.0 |
42.5±0.5 |
1900 |
1.2 |
-20 to 70 |
| GS-SC190 |
23.0 +0 -1.0 |
42.5±0.5 |
1900 |
1.2 |
-20 to 55 |
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
What Is the Basic Characteristic of Ni-Cad Battery?
1.Ni-Cad Battery can be repeated more than 500 times charge and discharge, it is very economical.
2.The internal resistance is small, which can be used for discharging large current. When it discharge, the voltage is small, as a DC power supply, it is a kind of high quality Ni-Cd Rechargeable Battery Pack.
3.Because of the completely sealed type, there will be no electrolyte leakage phenomenon, and no need to add electrolyte.
4.Compared with other types of battery, Ni-Cd battery can withstand overcharge or let electricity, the operation is simple and convenient.
5.Long time placement will not deteriorate the performance, and when the power is fully charged, the original characteristics can be restored.
6.Ni-Cd battery can be used in a wide range of temperature.
Why Godson?
-- Professional And Stay Focused
More than twenty years’ experience in battery industry; Keep focusing on emergency lighting battery, e-bike battery and power tool battery.
-- Great Reliability
Expected life of our Ni-Cd battery pack is more than 5 years; Expected life of our LiFePO4 battery pack is more than 10 years; Our batteries comply with standards of ICEL 1010, IEC 60598, IEC 61951, IEC 61960, IEC 62133 and UN38.3.
-- Super High Cost-Effective
Price of our products is much more competitive comparing with our competitors, but with the same or even better performance.
-- Strict Control In Production Process
ISO9001/2008 standards are strictly implemented in every process of our production.
-- Quick Response and Fast Delivery
Every inquiry would be replied within 24 hours, each order would be delivered within 30 days.
-- Flexibility in orders
Small orders acceptable as well.
