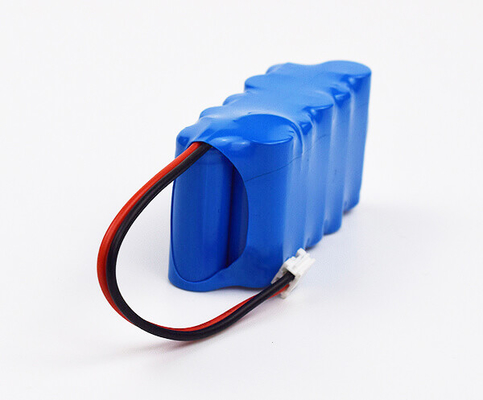

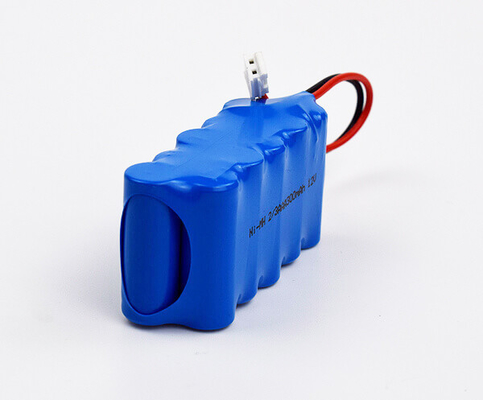

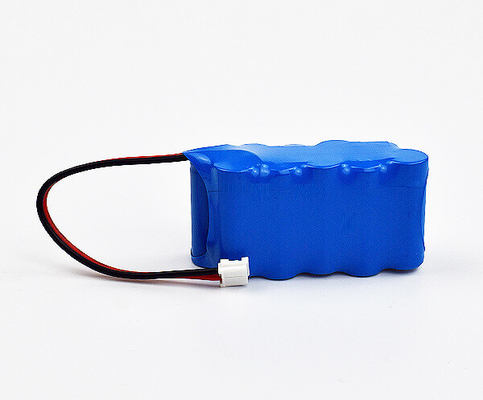

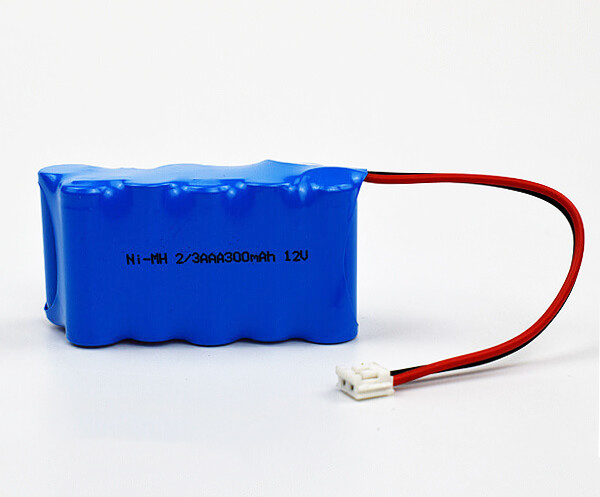

High Temp For Emergency Lighting Ni-MH Battery 2/3AAA 300mAh 12V
Product parameters:
| Pos. |
Product Parameters |
Data |
| 1 |
Standard Charge Mode |
CC/CV |
| 2 |
Cycle Life |
≥500 times |
| 3 |
Operating Temperature |
(-20℃) - (+70℃)Discharge(-20℃) - (+60℃) |
| 4 |
Storage Temperature |
(-30℃) - (+60℃) |
| 5 |
Cell Dimension |
10.5 +0 -0.7(D), 28.0±0.5(H) |
| 6 |
Cell Weight |
≈6.5g |
| 7 |
Expected Life |
4 years |
| 8 |
Packaging |
Standard export package or customized package |
Application:
| Pos. |
Application fields |
Application of the product |
| 1 |
Lighting |
emergency lighting, emergency power supply, solar lights, searchlingts, flashlights |
| 2 |
Power tools |
electric drills, planers, saws, power granted |
| 3 |
Electronic toys |
remote control car, remote control boats, aircraft, model aircraft |
| 4 |
Communication equipment |
cordless phones, walkie-talkie |
| 5 |
Other uses |
electric shavers, massagers, electric tooth brush |
Product performance:
1. Long service life (under normal conditions, the battery cycles more than 500 times.)
2. High rate charging and discharging performance: under the charging conditions specified by the company, the battery can be sufficient in one hour and can discharge with more than 10C current.
3. Wide temperature range: in high and low temperature environment, the battery performance is stable, and the working temperature range is - 10-70 ℃.
4. Good storage performance: at room temperature, the capacity of the battery remains above 70% after one month storage.
5. Ni-MH rechargeable batteries are considered to be more environmentally friendly than Ni-Cd batteries.
Cadmium is classified as a toxic element and therefore needs to be disposed of properly. There are many recycling stations, but if for some reason they end up in the trash, Ni-MH batteries can be recycled (recommended), but if there is no recycling option, it's not "bad" to throw them in the trash.
6. No memory effect (compared to Ni-Cd).
Ni-MH can be partially charged (for example, on a cloudy day) and fully charged to maximum capacity on the next sunny day. There is a small amount of discharge (trickle discharge) during storage, so it is best to put Ni-MH batteries in your garden solar lights before dawn on a sunny day. They will then be ready for you to enjoy the nighttime fun.
Performance Curves for Ni-MH Cell:
1. Ni-MH Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-MH Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-MH Cell Charge Efficiency At Different Temperature
4. Ni-MH Cell Cycle Life Curve
