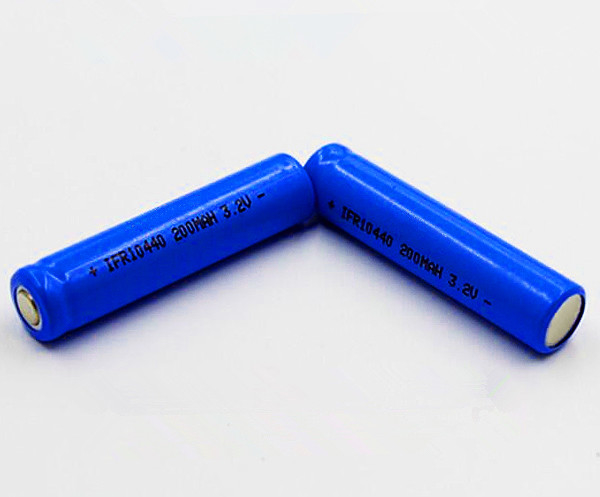

Lithium Iron Phosphate Emergency Light Battery 10440 3.2V 200mAh
Product parameters:
| Pos. |
Product Parameters |
Data |
| 1 |
Standard Charge Current |
0.1C for 16 hours |
| 2 |
Cycle Life |
≥2000 times |
| 3 |
Operating Temperature |
(-20℃) - (+60℃)
|
| 4 |
Storage Temperature |
(-20℃) - (+50℃) |
| 4 |
Expected Life |
10 years |
| 5 |
Cell Dimension |
10(W), 44(H)mm |
| 6 |
Cell Weight |
≈7g |
| 7 |
Packaging |
Standard export package or customized package |
Application fields:
| Pos. |
Application fields |
Application of the product |
| 1 |
Energy storage equipment |
energy storage equipment of solar energy and wind power generation system, uninterruptible power system (UPS) used with solar cells as energy storage equipment (BYD has been producing such batteries). |
| 2 |
Electric tools |
high power electric tools (wireless), electric drill, weeder, etc. |
| 3 |
Light electric vehicles |
electric vehicles, electric bicycles, recreational vehicles, golf carts, electric pushers, cleaning vehicles, hybrid electric vehicles (HEV). |
| 4 |
Small equipment |
medical equipment, electric wheelchair, electric scooter, toys (remote control electric airplane, car, boat). |
| 5 |
Other small electrical appliances |
miner's lamp, implantable medical devices (lithium iron phosphate is non-toxic, lithium battery can only meet the requirements of iron and lithium), which can replace lead-acid, nickel hydrogen, nickel cadmium, lithium cobalt, lithium manganese batteries in small electrical appliances. |
Are lithium iron phosphate (LFP) batteries suitable for emergency lighting?
LiFePO4 Battery has a series of unique advantages such as high working voltage, high energy density, long cycle life, low self-discharge rate, no memory effect, and green environmental protection. It also supports stepless expansion and is suitable for large-scale electric energy storage. There are good application prospects in the fields of safe grid connection of station power generation, power grid peak shaving, distributed power stations, UPS power supply, emergency power supply system and so on.
1. Energy efficiency. LFP is more efficient than NiCd in two ways.
--Self-discharge. All rechargeable batteries lose charge over time, but the rate with LFP is only 3-5% per month. The charger in the LFP circuit operates at low current during short and infrequent bursts.
--Charging efficiency. During the charging process of any battery, energy is lost in the form of heat. the charging efficiency of LFP is very high, about 95%.
2. Long cycle life. The cycle life of LiFePO4 battery is more than 2000 times. Under the same conditions, LiFePO4 battery can be used for 7 to 8 years.
3.Fast charging. Lithium iron phosphate battery can be charged and discharged quickly with high current 2C. Under the special charger, the battery can be fully charged within 40 minutes at 1.5C.
4. No memory effect. No matter what state the battery is in, it can be used as soon as it is charged. There is no need to discharge it before charging.
5. Environmental protection, non-toxic and pollution-free. Lithium iron phosphate battery is generally considered to be free of any heavy metals and rare metals (Ni MH batteries need rare metals), non-toxic (SGS certification), pollution-free, in line with European ROHS regulations, green environmental protection batteries.
6.High temperature resistance. The peak temperature of lithium iron phosphate can reach 350 to 500 ℃, while that of lithium manganate and lithium cobalt oxide is only about 200 ℃.
Performance Curves of LiFePO4 Cell:
1. LiFePO4 Cell Charge Curve (Charge at 0.1C)
2. LiFePO4 Cell Discharge Curve (Discharge at 0.2C )
3. LiFePO4 Cell Charge Efficiency At Different Temperature
4. LiFePO4 Cell Cycle Life Curve
5. LiFePO4 Cell Capacity Change At Smart Floating Charge At 55 degree
Our Products are Being Shipped.
Godson Technology Co., Ltd. is a globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4, Lion-polymer and other relevant lithium batteries.
Dating back to the year of 1993, we have already had 20 years' experience in battery industry. We have started to focus on emergency lighting battery and emergency lighting products since 2010, and concentrate on E-bike battery and power tool battery since 2013.
Relying on the great reliability and the feature of super high cost-effective, our products have been exported to many countries, such as USA, UK, Turkey, Germany, Ireland, Italy, Spain, Poland and Singapore.
FAQ
Q1:Are these new cells?
yes 100% ,factory direct.
Q2: Are you a trading company or manufacturer?
A: We are globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4,, Lion-polymer and other relevant lithium batteries.
Q3: Can you do OEM?
A: Yes, OEM is acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.
Q4:Where can I get the price?
A: Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get the product specifications such as voltage capacity application etc.
