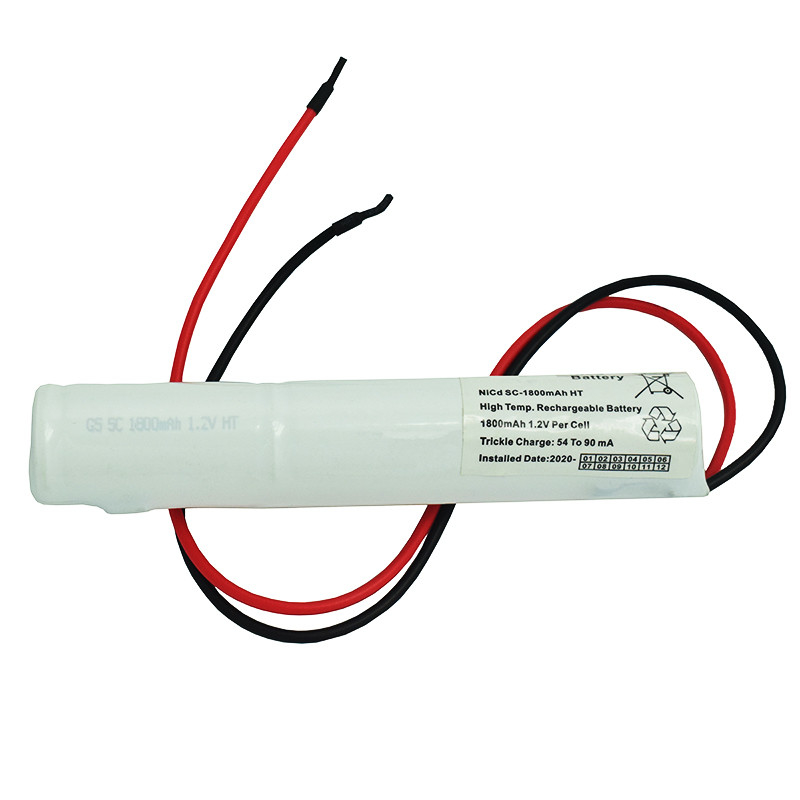

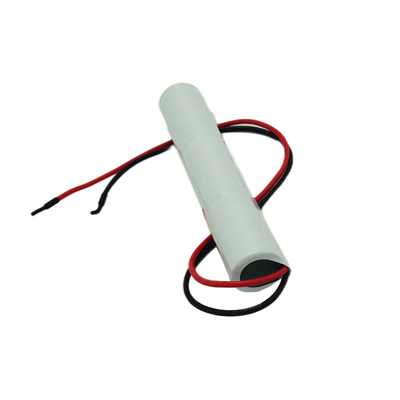

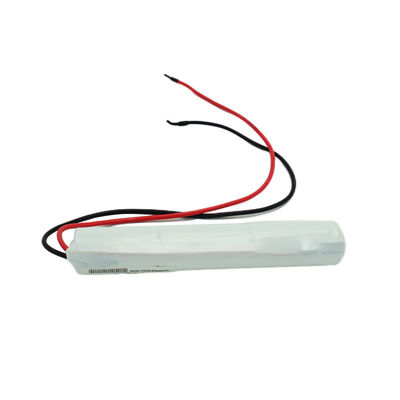

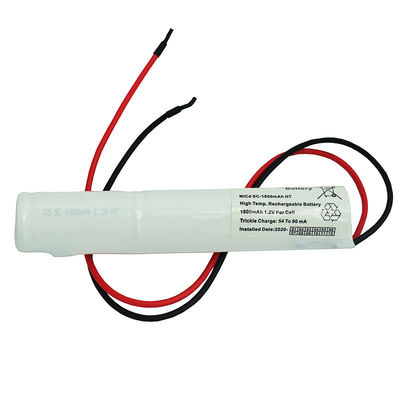

Nickel Cadmium Rechargeable Battery Pack SC1800mAh 3.6V - Good Cycle Life
Product parameters:
| Pos. |
Product Paramaters |
Data |
| 1 |
Standard Charge Mode |
0.1C for 16 hours |
| 2 |
Cycle Life |
≥500 times |
| 3 |
Operating Temperature |
(-20℃) - (+70℃) |
| 4 |
Storage Temperature |
(-30℃) - (+60℃) |
| 5 |
Cell Dimension |
23 +0 -1.0(D), 42.5±0.5(H) |
| 6 |
Expected Life |
5 years |
| 7 |
Packaging |
Standard export package or customized package |
| 8 |
Cell Weight |
≈47.5g |
|
Test
|
Specification
|
Conditions
|
Remarks
|
| Open Circuit Voltage(OCV) |
≥1.25V |
After 24 hours standard charge |
|
|
Capacity
|
≥1800mAh
|
Standard Charge/Discharge
|
Up to 3 cycles are allowed |
|
0.5C Discharge
|
≥110min
|
Standard Charge,
1hr rest before discharge
|
End voltage 1.0V
|
| Permanent Charge Endurance Test |
T1≥195min T2≥170min |
|
(See note 2)
|
|
Internal Impedance (Ri)
|
≤20mΩ
|
Following a standard charge period, Checked at 1000Hz with 1~4 hour
|
|
|
Overcharge
|
No leakage
nor deformation
|
Standard discharge 180mA(0.1C) charge 48 hours
|
|
|
Charge Retention
|
≥1170mAh
|
Standard Charge, Storage:28 days, Standard Discharge |
|
|
Charge Efficiency
|
≥270min
|
Standard discharge
Recharge at 0.1C for 10 hours,then Discharge at 0.2C to 1.0/cell.
|
|
|
Leakage
|
No leakage
nor deformation
|
Fully charged at900mA(0.5C), Storage for 14 days
|
|
|
IEC Cycle Test
|
≥500 Cycle
|
IEC 61951-1:2003
|
(see Note 3)
|
What are the different parts of a battery? A short summary:
--anode: the negative electrode during discharge. While charging, this becomes positive. In AA and AAA batteries, this is usually the protruding part on the top.
--cathode: the positive electrode during discharge. While charging, this becomes negative. In AA and AAA batteries, this is usually the flat part on the bottom.
--seal: a part of the battery cell that makes sure chemicals cannot leave the battery. It also limits air intake. A good seal is essential for a safe battery.
Technical battery terms explained
Whereas they're simple to use, the electrical processes are often a little more complex. Let's take a look at the most common technical battery terms used:
--capacity: the amount of energy that is stored inside a battery. It is measured in mAh (milliamp hours).
-- voltage causes electric charges to move through the wire or other conductors. It is measured in volt (V).
-- cycle: one sequence of charge and discharge, or: how many times you can use and recharge a battery. Every rechargeable battery has a set amount of cycles (i.e. cycle life) before it starts losing capacity and efficiency.
Ni-Cd Battery Cell Performance:
1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree
2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree
3. Ni-Cd Cell Charge Efficiency At Different Temperature
4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)
5. Ni-Cd Cell Cycle Life Curve
Application of Ni-Cd Battery
The Ni-Cd Battery is a type of rechargeable battery utilizing nickel oxide hydroxide and metallic cadmium as electrodes.
Sealed NiCd cells were at once widely utilized in portable power tools, photography equipment, flashlights, emergency lighting, hobby R/C, and mobile electronic devices. The superior capacity of this Nickel-metal hydride batteries, and more recently their lower price, has largely supplanted their use. What's more, the environmental effects of the disposal of the toxic metal cadmium has contributed substantially to the reduction in their use. Within the European union , NiCd batteries may now only be supplied for replacement purposes or for certain types of new equipment such as medical devices.
FAQ
Q1:Are these new cells?
yes 100% ,factory direct.
Q2: Are you a trading company or manufacturer?
A: We are globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4,, Lion-polymer and other relevant lithium batteries.
Q3: Can you do OEM?
A: Yes, OEM is acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.
Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.
